Anritsu FCN4760
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 6 GHz |
| Connector Type | N-Type Female |
| Impedance | 50 Ohm |
| VSWR | ≤ 1.25 (10 MHz to 3 GHz), ≤ 1.35 (3 GHz to 6 GHz) |
| Power Handling | 2 W Average |
| Insertion Loss | ≤ 0.5 dB |
| Operating Temperature | -40°C to +85°C |
| Return Loss | ≥ 20 dB (10 MHz to 3 GHz) |
| Body Material | Stainless Steel |
| Compatibility | Anritsu Site Master, Cell Master, and BTS Master Series Analyzers |
Anritsu FCN4760 Options:
- FCN4760 - FCN4760 - 4.7 to 6.0 GHz Frequency Converter
- FCN4760 - 1091-27 - Type-N male to SMA female adapter
- FCN4760 - 1091-26 - Type-N male to SMA male adapter
- FCN4760 - 2000-1361 - Antenna, 5725-5825 MHz, SMA male connector
| Model | FCN4760 |
|---|

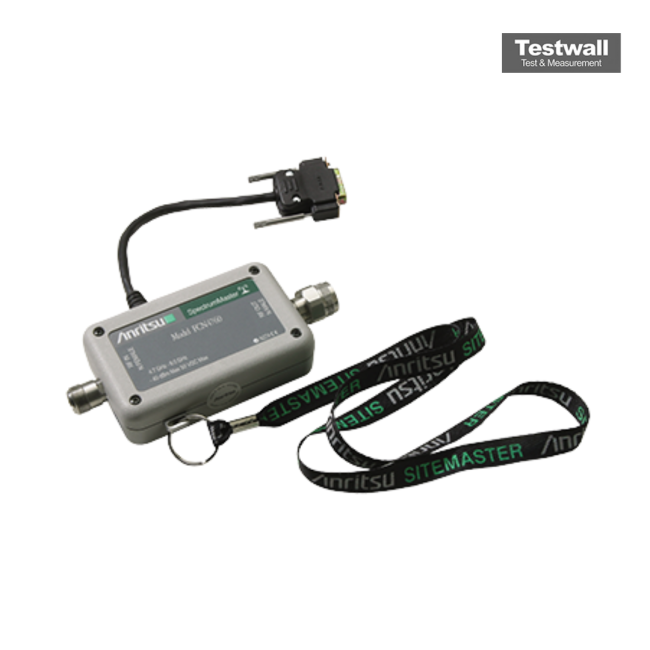

The Anritsu FCN4760 is a frequency down-converter module covering 4.7–6.0 GHz, designed for integration with the Anritsu Spectrum Master MS2711D or Site Master S332D (Option 6). It converts high-band RF signals into an analyzer-friendly range, supports adjacent channel power, occupied bandwidth, and C/I measurements, and operates reliably from −10 °C to 50 °C. With a compact plug-in design under 0.45 kg and an N-type connector, it offers portability and robust field use.
This module is primarily used for field analysis of fixed-wireless signals, including 802.11a deployments, ensuring precise spectrum measurements across demanding environments.
Testwall can supply the used Anritsu FCN4760, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu FCN4760.
