Keysight (Agilent) 85134E
| Attribute | Value |
|---|---|
| Frequency Range | DC to 50 GHz |
| Connector Type | 3.5 mm to 2.4 mm Adapter |
| Gender | Male to Female |
| Impedance | 50 Ohm |
| VSWR (Maximum) | 1.25:1 |
| Insertion Loss (Maximum) | 0.3 dB |
| Operating Temperature Range | 0°C to +55°C |
| Storage Temperature Range | -40°C to +75°C |
| Body Material | Stainless Steel |
| Mating Durability | Minimum 500 Mating Cycles |
| Model | 85134E |
|---|

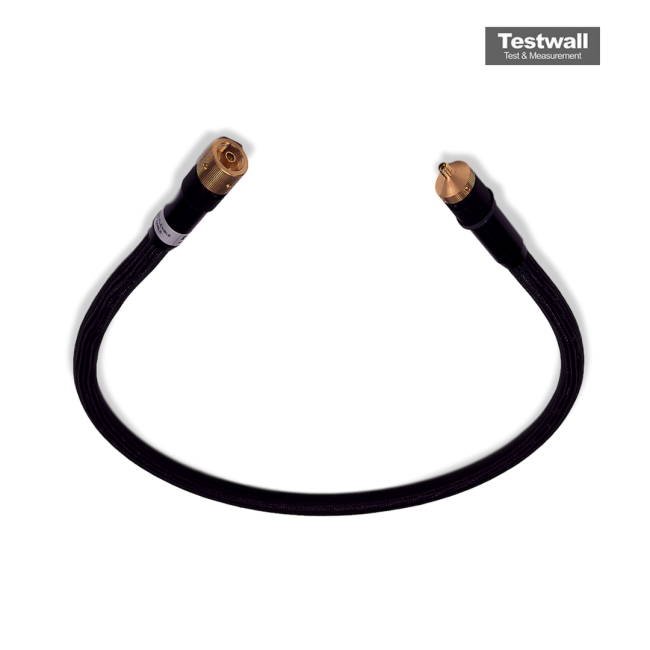

The Keysight (Agilent) 85134E is a 97.2 cm (38.25 in) flexible cable featuring a 2.4 mm female to PSC-3.5 mm female connector. It operates from DC to 26.5 GHz, delivering a return loss of 16 dB or better. The insertion loss is 0.46√f + 0.3 for the test port connector, and 2.7 dB max for the device connector at peak frequency. Phase stability under a 90° bend is under 0.22 dB, with phase shift 0.16f + 0.8.
This cable is ideal for high-frequency applications requiring flexibility and stable performance under bending. Specially designed for test ports, it doesn’t mate with standard male connectors.
Testwall can supply the used Keysight (Agilent) 85134E, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 85134E.
