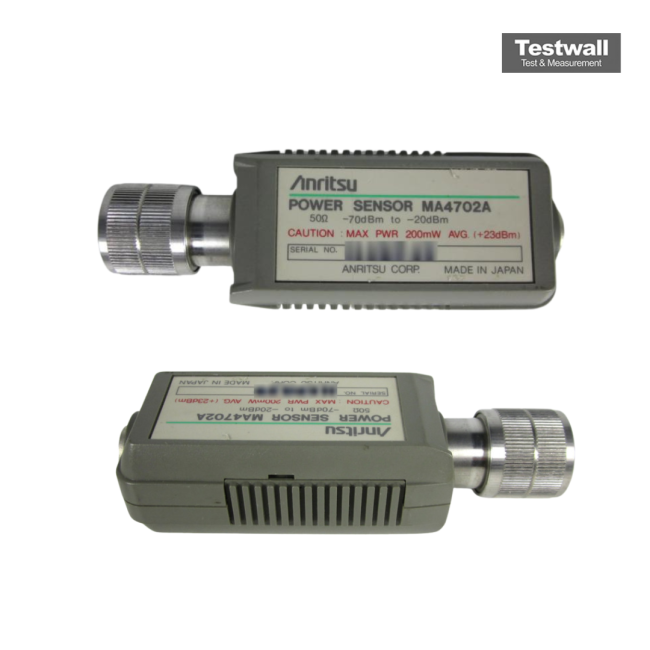

Anritsu MA4702A
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 3 GHz |
| Measurement Parameters | Amplitude, Frequency, and Power |
| Dynamic Range | Up to 90 dB |
| Input Impedance | 50 Ohms |
| Connector Type | Type-N Female |
| Power Supply | AC 100-240V, 50/60 Hz |
| Display | LCD Color Display |
| Interface | GPIB and RS-232 |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Weight | Approximately 7 kg (15.4 lbs) |
Anritsu MA4702A Options:
- MA4702A - MA4001A - Range Calibrator (for indicator full-scale calibration)
- MA4702A - MA4002A - Sensor Adapter for quasi-millimeter wave (for MP712A/713A/737A/738A)
- MA4702A - MA4002B - Sensor Adapter for millimeter wave (for MP714A/715A/716A/717A)
- MA4702A - J0364 - APC-3.5 to N conversion connector (required for MP4703A/4704A/4705A)
- MA4702A - J0365 - NC-J•N-P conversion connector for sensitivity calibration
- MA4702A - MP47A - Attenuator for sensitivity calibration (30 dB, required for MA4602A/4604A/4702A/4704A)
- MA4702A - MP721D - Fixed Attenuator (20 dB, N-type, 2 W, DC to 12.4 GHz)
- MA4702A - J0077 - Fixed attenuator (20 dB, N-type, 2 W, DC to 18 GHz)
- MA4702A - J0063 - Fixed attenuator (30 dB, N-type, 10 W, DC to 12.4 GHz)
- MA4702A - J0078 - Fixed attenuator (20 dB, N-type, 10 W, DC to 18 GHz)
- MA4702A - J0395 - Fixed attenuator (30 dB, N-type, 30 W, DC to 8.6 GHz)
- MA4702A - J0064A - 7 GHz band coaxial waveguide connector (5.8 to 8.2 GHz, N-J to BRJ-7)
- MA4702A - J0064B - 10 GHz band coaxial waveguide connector (10.0 to 15.0 GHz, N-J to BRJ-120)
- MA4702A - J0064C - 10 GHz band coaxial waveguide connector (8.2 to 13.0 GHz, N-J to BRJ-10)
- MA4702A - J0366 - 18 GHz band coaxial waveguide connector (17.7 to 21.2 GHz, SMA-J to FUBR180)
- MA4702A - J0367 - 22 GHz band coaxial waveguide connector (18 to 26.5 GHz, APC-3.5-J to UG-5971U)
- MA4702A - J0368 - 30 GHz band coaxial waveguide connector (26.5 to 34 GHz, APC-3.5-J to UG-5971U)
- MA4702A - J0632A - 18 GHz band coaxial waveguide connector (17.7 to 22 GHz, SMA-J to FUBR180)
- MA4702A - J0632B - 26 GHz band coaxial waveguide connector (22 to 33 GHz, K-J to FUBR260)
- MA4702A - J0633A - Conversion connector (NC-J • BNC75-J)
- MA4702A - J0633B - Conversion connector (NC-J • BNC75-P)
- MA4702A - J0633C - Conversion connector (NC-P • BNC75-J)
- MA4702A - J0633D - Conversion connector (NC-P • BNC75-P)
- MA4702A - J0633E - Conversion connector (NC-J • SP3C-J)
- MA4702A - J0633F - Conversion connector (NC-J • SP3C-P)
- MA4702A - J0633G - Conversion connector (NC-P • SP3C-J)
- MA4702A - J0633H - Conversion connector (NC-P • SP3C-P)
- MA4702A - J0369 - Taper waveguide: WRJ-320 (FUBR320)/WRJ-260 (FUBR260)
- MA4702A - B0183 - Rack mount kit-1 (for one ML4803A)
- MA4702A - B0184 - Rack mount kit-2 (for two ML4803A)
- MA4702A - B0185 - Carrying bag
- MA4702A - B0186 - Protective front cover
- MA4702A - J0370C - Sensor cord, 2.5 m (for extension)
- MA4702A - J0370E - Sensor cord, 5 m (for extension)
- MA4702A - J0370G - Sensor cord, 10 m (for extension)
- MA4702A - MZ5003A - Battery Power Supply (for DC operation)
- MA4702A - J0371 - DC power cord (for +7 to +12 V power supply)
- MA4702A - J0008 - GPIB cable, 2 m
| Model | MA4702A |
|---|
The Anritsu MA4702A is designed for wide RF frequency coverage, delivering high sensitivity down to –70 dBm and exceptional dynamic range. It integrates EEPROM-based embedded calibration and ensures accurate performance for both CW and complex modulation signals, making it a versatile solution for telecom and laboratory testing environments.
Optimized for use with Anritsu ML24xx power meters, it supports precision measurements across diverse applications including telecom monitoring, R&D laboratories, and field service operations.
Testwall can supply the used Anritsu MA4702A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MA4702A.
