Anritsu MG3691B
| Attribute | Value |
|---|---|
| Frequency Range | 2 GHz to 10 GHz |
| Output Power Range | -20 dBm to +13 dBm |
| Frequency Resolution | 0.001 Hz |
| Phase Noise | -116 dBc/Hz at 10 kHz offset (typical) |
| Frequency Switching Speed | Less than 10 ms (typical) |
| Modulation Types | AM, FM, Phase, Pulse |
| Output Connector | Type-N (female) |
| Harmonics | -30 dBc or better |
| Power Supply | 90 to 264 VAC, 47 to 63 Hz |
| Interface | GPIB, RS-232 |
Anritsu MG3691B Options:
- MG3691B - 1A - Rack Mount with slides
- MG3691B - 1B - Rack Mount without slides
- MG3691B - 2X - Mechanical Step Attenuator
- MG3691B - 2E - Electronic Step Attenuator
- MG3691B - 3 - Ultra Low Phase Noise, main band
- MG3691B - 4 - 10 MHz to 2.2 GHz RF coverage
- MG3691B - 5 - 10 MHz to 2 GHz RF coverage
- MG3691B - 6 - Analog Sweep Capability
- MG3691B - 7 - IF Up-Conversion
- MG3691B - 8 - Power Monitor
- MG3691B - 9X - Rear Panel Output
- MG3691B - 10 - User-Defined Modulation Waveform Software
- MG3691B - 12 - Frequency and Phase Modulation – External only
- MG3691B - 14 - Amplitude Modulation – External only
- MG3691B - 15X - High Power Output
- MG3691B - 16 - High Stability Time Base
- MG3691B - 17 - Delete Front Panel
- MG3691B - 18 - mmW Bias Output
- MG3691B - 20 - Scan Modulation
- MG3691B - 22 - 0.1 Hz to 10 MHz Audio coverage
- MG3691B - 26X - Pulse Modulation – External only
- MG3691B - 27 - Internal LF and Pulse Generators – For Internal AM/FM/Phase, and Pulse
- MG3691B - 28X - Analog Modulation Suite – For Bundled Options 12, 14, 26, and 27
- MG3691B - 30 - Low Phase Noise
- MG3691B - 37A - Performance Suite – For Bundled Options 2A, 5 and 28A
- MG3691B - 38A - Ultra Performance Suite – For Bundled Options 2A, 3, 4, 15A, 22 and 28A
| Model | MG3691B |
|---|

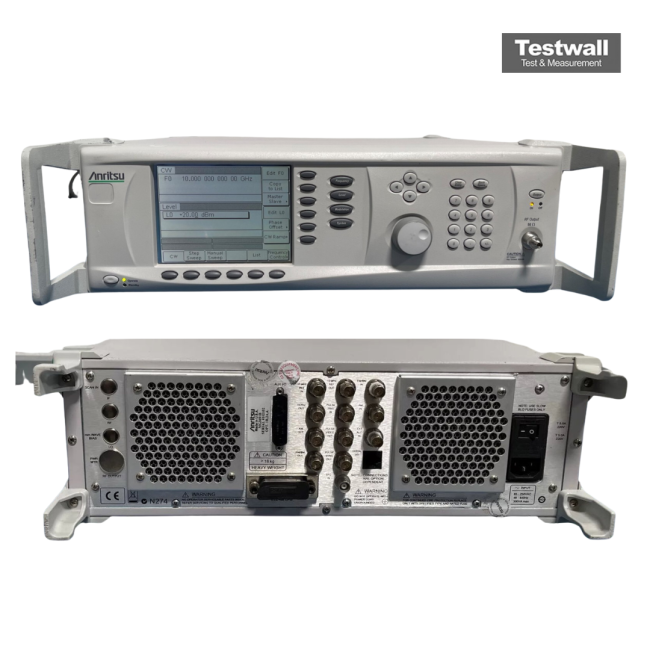

The Anritsu MG3691B is a high‑performance broadband signal generator built on a platform covering 0.1 Hz to 65 GHz (operational to 67 GHz). The MG3691B model operates from 2 to 10 GHz and is extendable to 325 GHz or beyond using external multipliers. It delivers best‑in‑class spectral purity, very high output power, and fast, deterministic frequency stepping for demanding RF/microwave workflows.
At 10 GHz it provides a guaranteed +25 dBm with –94 dBc/Hz phase noise at 1 kHz offset, and typically switches in 5 ms per point. This performance eliminates external amplification, verifies tough spectral‑purity limits, and shortens overall test time.
Testwall can supply the used Anritsu MG3691B, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MG3691B.
