Tektronix AWG5012
Arbitrary Waveform Generator
2 analog output channels Number of Channels
Up to 1.2 GS/s Sample Rate
14-bit DAC resolution Vertical Resolution
250 MHz Analog Bandwidth
32 M samples per channel (standard), expandable to 64 M samples Waveform Memory
| Attribute | Value |
|---|---|
| Number of Channels | 2 analog output channels |
| Sample Rate | Up to 1.2 GS/s |
| Vertical Resolution | 14-bit DAC resolution |
| Analog Bandwidth | 250 MHz |
| Waveform Memory | 32 M samples per channel (standard), expandable to 64 M samples |
| Output Amplitude | 20 mVpp to 2 Vpp into 50 Ω |
| Marker Outputs | 2 marker outputs per channel (4 total), with adjustable voltage levels |
| Sequence Length | Up to 32,000 sequence steps |
| Clock Reference | Internal or external 10 MHz reference clock |
| Connectivity & Interface | GPIB, USB, and LAN (LXI compliant) interfaces for remote control |
| Model | AWG5012 |
|---|

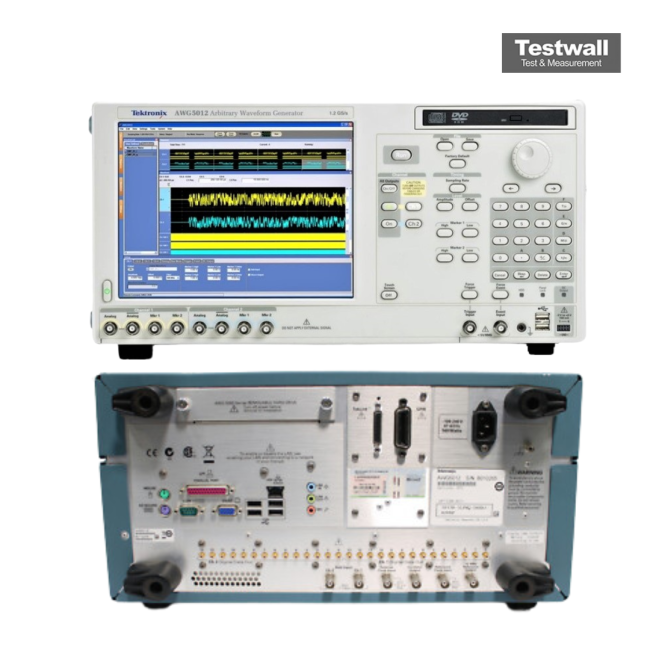

The Tektronix AWG5012 is a high-performance dual-channel arbitrary waveform generator offering 1.2 GS/s sampling rate and 14-bit vertical resolution, optimized for advanced analog and digital signal emulation. Its variable waveform repetition and superior signal fidelity make it ideal for demanding test environments.
With two output channels and adaptability for radar and communication systems, it excels in precision waveform generation tasks.
Testwall can supply the used Tektronix AWG5012, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG5012.
