Anritsu MG3693B
| Attribute | Value |
|---|---|
| Frequency Range | 2 GHz to 26.5 GHz |
| Output Power Range | -110 dBm to +20 dBm |
| Frequency Resolution | 0.001 Hz |
| Phase Noise | -116 dBc/Hz at 10 kHz offset (at 10 GHz) |
| Spectral Purity (Harmonics) | -60 dBc typical |
| AM/FM/Phase Modulation | Internal and External AM, FM, and Phase Modulation supported |
| Pulse Modulation | On/Off ratio greater than 80 dB, pulse width as narrow as 10 ns |
| Frequency Switching Speed | Less than 5 ms typical |
| Interface/Connectivity | GPIB (IEEE-488), RS-232 standard interfaces |
| Power Requirements | 100-240 VAC, 47-63 Hz, approximately 250 W |
| Model | MG3693B |
|---|

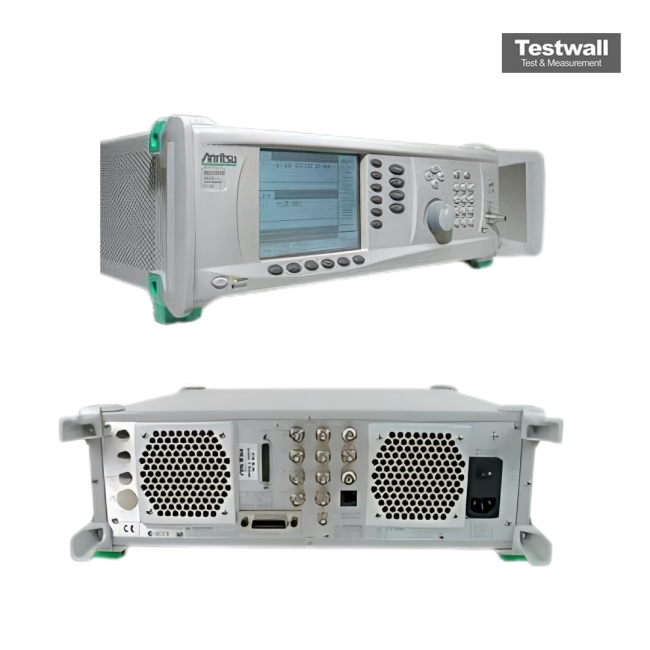

The Anritsu MG3693B is a broadband high-performance signal generator covering RF and microwave frequencies from 2 to 30 GHz, with extensions up to 325 GHz via external multipliers. It delivers exceptional output power, ultra-low phase noise, and supports amplitude, frequency, phase, and pulse modulation, with both analog ramp and digital sweep modes.
Designed for high-power LO applications and rapid ATE testing, the MG3693B maintains full compatibility with existing MG3690A and 68C/69B synthesizer families. It’s highly configurable and upgrade-ready to meet evolving testing requirements.
Testwall can supply the used Anritsu MG3693B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MG3693B.
