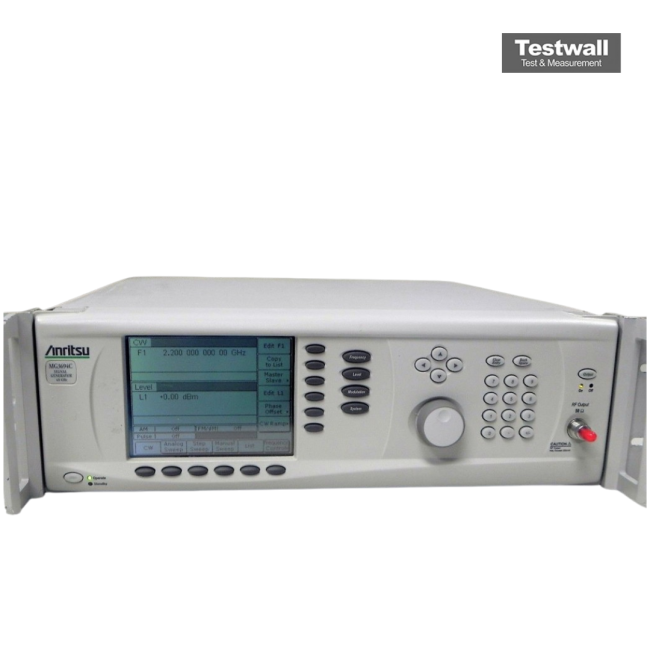

Anritsu MG3695C
Signal Generator, 2 GHz to 50 GHz
2 GHz to 67 GHz Frequency Range
+20 dBm to -110 dBm (typical, frequency dependent) Output Power Range
0.001 Hz Frequency Resolution
-116 dBc/Hz at 10 kHz offset (at 10 GHz) Phase Noise (Typical)
AM, FM, Phase Modulation, Pulse Modulation, and I/Q Modulation Modulation Types
| Attribute | Value |
|---|---|
| Frequency Range | 2 GHz to 67 GHz |
| Output Power Range | +20 dBm to -110 dBm (typical, frequency dependent) |
| Frequency Resolution | 0.001 Hz |
| Phase Noise (Typical) | -116 dBc/Hz at 10 kHz offset (at 10 GHz) |
| Modulation Types | AM, FM, Phase Modulation, Pulse Modulation, and I/Q Modulation |
| Spectral Purity (Harmonics) | Less than -55 dBc (typical) |
| Frequency Switching Speed | Less than 5 ms (typical, list mode) |
| Reference Frequency | Internal 10 MHz reference; External reference input supported |
| Interface & Connectivity | GPIB, USB, and Ethernet (LAN) remote control interfaces |
| Power Requirements | 100–240 VAC, 50/60 Hz, approximately 200 W maximum |
Anritsu MG3695C Options:
- MG3695C - 1A - Rack Mount with slides. Rack mount kit containing a set of track slides, mounting ears, and front panel handles to let the instrument be mounted in a standard 19-inch equipment rack.
- MG3695C - 1B - Rack Mount without slides. Modifies rack mounting hardware to install unit in a console that has mounting shelves. Includes mounting ears and front panel handles.
- MG3695C - 2C - Mechanical Step Attenuator. Adds a 10 dB/step attenuator. Rated RF output power is reduced.
- MG3695C - 3 - Ultra Low Phase Noise. Adds new modules to significantly reduce SSB phase noise. Not available with Option 3X.
- MG3695C - 3X - Premium Phase Noise. Improves Option 3 < 1 kHz offset. Not available with Option 3.
- MG3695C - 4 - 8 MHz to 2.2 GHz RF coverage, Ultra-Low Phase Noise version. Uses a digital down converter to significantly reduce SSB phase noise. All specifications apply ≥ 10 MHz.
- MG3695C - 5 - 8 MHz to 2 GHz RF Coverage. Uses an analog down converter. All specifications apply ≥ 10 MHz.
- MG3695C - 6 - Analog Sweep Capability. When used with Option 4, analog sweep capability is limited to ≥ 500 MHz.
- MG3695C - 9V - Rear Panel Output. Moves the RF output connector to the rear panel.
- MG3695C - 9K - Rear Panel Output. Moves the RF output connector to the rear panel.
- MG3695C - 10 - User-Defined Modulation Waveform Software. External software package provides the ability to download user-defined waveforms into the memory of the internal waveform generator, serially or via GPIB or Ethernet. External PC and an instrument with LF Generator, Option 27, are required.
- MG3695C - 12 - Frequency and Phase Modulation. External, via a rear panel BNC connector. For internal modulation capability, requires addition of an LF Generator, Option 27.
- MG3695C - 14 - Amplitude Modulation. External, via a rear panel BNC connector. For internal modulation capability, requires addition of an LF Generator, Option 27.
- MG3695C - 15C - High Power. Adds high-power RF components to the instrument to increase its output power level.
- MG3695C - 16 - High Stability Time Base. Adds an ovenized, 10 MHz crystal oscillator as a high-stability time base.
- MG3695C - 17 - Delete Front Panel. Deletes the front panel for use in remote control applications where a front panel display and keyboard control are not needed. Only available with Options 1A or 1B.
- MG3695C - 22 - 0.1 Hz to 10 MHz Audio coverage. Uses a DDS for coverage down to approximately DC. When adding Option 22, the output power is derated by 2 dB. Frequency resolution below 10 MHz is 0.02 Hz. No modulation is available in the 0.1 Hz to 10 MHz band. Not available without Option 4 or 5.
- MG3695C - 26A - Pulse Modulation. External, via a rear panel BNC connector. For internal modulation capability, requires addition of a Pulse Generator, Option 27.
- MG3695C - 26B - Pulse Modulation. External, via a rear panel BNC connector. For internal modulation capability, requires addition of a Pulse Generator, Option 27.
- MG3695C - 27 - Internal LF and Pulse Generators. Provides modulation waveforms for internal AM (if Option 14 installed), FM (if Option 12 installed), ΦM (if Option 12 installed) and Pulse (if Option 26A/B installed). Not available without Option 12, 14, or 26.
- MG3695C - 28B - Analog Modulation Suite. Bundles Options 12, 14, 26 and 27, offering internally- and externally-driven AM, FM, ΦM, and Pulse Modulation.
- MG3695C - 36 - Ultra-Stable Phase Tracking. Provides the capability for ultra-stable phase tracking between instruments using the internal 100 MHz reference. Requires Option 3 or 3X.
- MG3695C - CE - CE Compliance with CE mark.
- MG3695C - 98 - Standard Calibration to ISO17025 and ANSI/NCSL Z540-1. Provides a calibration certificate, decal, and "Calibration void if removed" tamper seals.
- MG3695C - 99 - Premium Calibration to ISO17025 and ANSI/NCSL Z540-1. Provides everything included with Option 98 plus test report and uncertainty data.
| Model | MG3695C |
|---|
The Anritsu MG3695C RF/Microwave Signal Generator provides coverage from 0.1 Hz to 70 GHz with a single coaxial output, delivering low phase noise, fast switching speeds, and versatile modulation options including AM, FM, phase, and pulse. Designed for wireless communications, aerospace, defense, and electronics testing, it ensures clean and stable signal generation for complex applications.
With advanced options like narrow pulse radar emulation, low phase noise configurations, and a stable time base, the Anritsu MG3695C offers precision and reliability. Its intuitive interface and remote control via GPIB or Ethernet enhance operational flexibility.
Testwall can supply the used Anritsu MG3695C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MG3695C.
