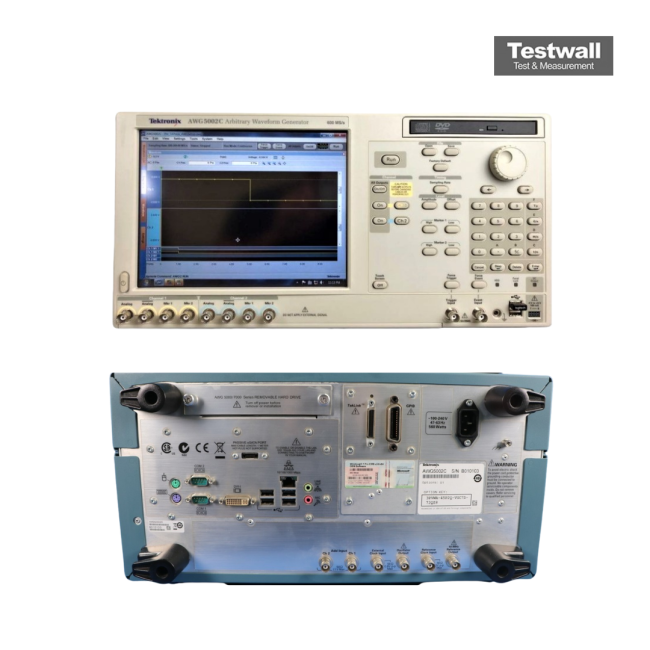

Tektronix AWG5002C
| Attribute | Value |
|---|---|
| Number of Channels | 2 analog output channels |
| Sample Rate | Up to 600 MS/s per channel |
| Vertical Resolution | 14-bit DAC resolution |
| Analog Bandwidth | 240 MHz |
| Waveform Memory | 32 MSamples per channel (standard), expandable to 64 MSamples |
| Output Amplitude Range | 50 mVpp to 2 Vpp into 50 Ω |
| Marker Outputs | 4 marker outputs (2 per channel), 1 Vpp into 50 Ω |
| Clock Reference | Internal and external clock reference; 10 MHz reference input/output |
| Operating System / Interface | Windows XP Embedded; GPIB, USB, and LAN (LXI Class C) connectivity |
| Sequencing | Up to 16,383 sequence steps with advanced waveform sequencing and looping capability |
| Model | AWG5002C |
|---|
The Tektronix AWG5002C is a high-performance 2-channel arbitrary waveform generator delivering 600 MS/s sample rate and 14-bit vertical resolution. With 16M points per channel, it ensures precision signal generation across all modulation bandwidths. This instrument includes an open Windows 7-based interface, enabling seamless integration with third-party software and peripherals.
Ideal for wireless communications, defense electronics, semiconductor testing, and digital product design, the AWG5002C supports synchronized marker outputs and digital data channels, solving complex signal simulation challenges effortlessly.
Testwall can supply the used Tektronix AWG5002C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG5002C.
