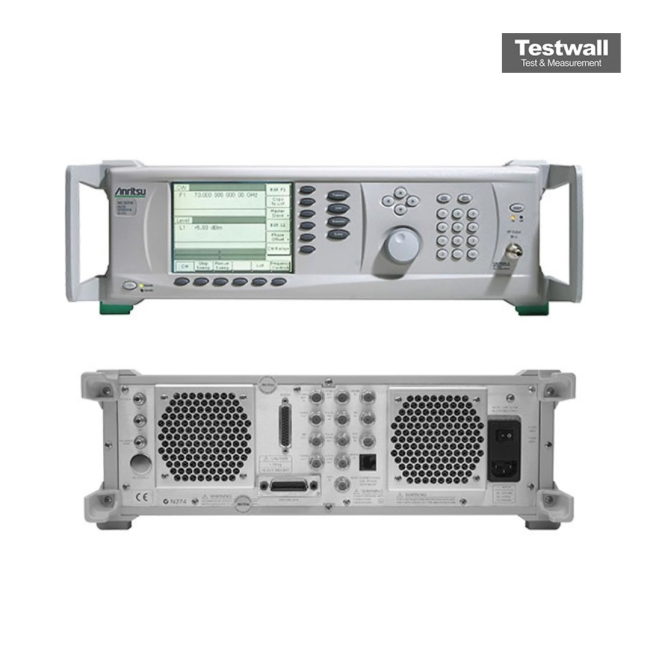

Anritsu MG3696A
| Attribute | Value |
|---|---|
| Frequency Range | 2 GHz to 65 GHz |
| Output Power Range | +20 dBm to -20 dBm (typical) |
| Frequency Resolution | 0.001 Hz |
| Phase Noise | -80 dBc/Hz at 10 kHz offset (typical) |
| Spectral Purity | Low spurious and harmonic outputs for clean signal generation |
| Modulation Capabilities | AM, FM, Phase Modulation, and Pulse Modulation |
| Sweep Modes | Step sweep, analog sweep, and list sweep |
| Interface/Connectivity | GPIB (IEEE-488), RS-232, and optional LAN interface |
| Power Supply | 100–240 VAC, 50/60 Hz, auto-ranging |
| Operating Temperature Range | 0°C to 55°C |
| Model | MG3696A |
|---|
The Anritsu MG3696A series is a high-performance signal generator compatible with older Anritsu synthesizers and essential for Scalar Network Analyzer (SNA) measurements. It supports integration with the Anritsu 56100A series and Keysight’s (Agilent) 8757D and 8757E SNAs. Offering Master/Slave capability, it enables precise RF and LO offset frequencies for mixer testing. Additionally, it provides external power meter leveling, ensuring flat input power levels for TWTA testing.
With flexible options for SNA, mixer, and TWTA applications, the Anritsu MG3696A delivers reliable and accurate measurement performance in demanding RF environments.
Testwall can supply the used Anritsu MG3696A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MG3696A.
