Tektronix

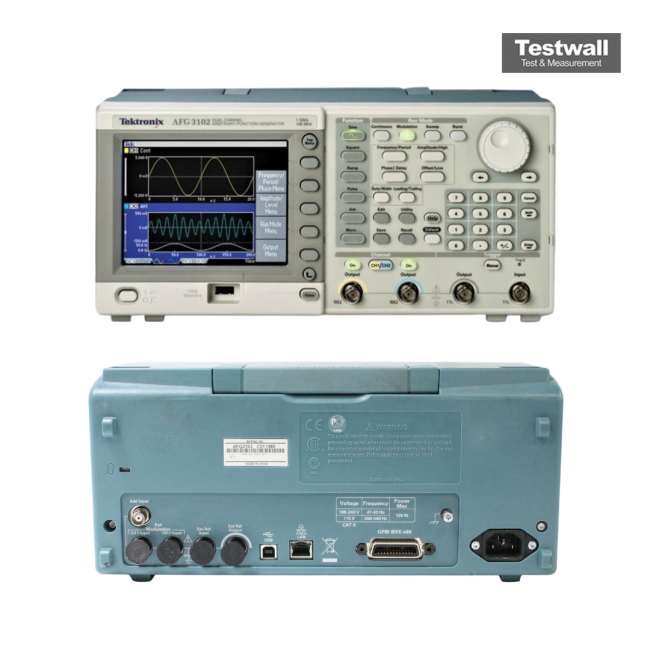

Tektronix AFG3102
1MHz - 100MHz Function Generator
2 Number of Channels
1 µHz to 100 MHz Frequency Range
Sine, Square, Pulse, Ramp, Triangle, Noise, DC, and 12 predefined waveforms Waveform Types
Up to 128K points per channel Arbitrary Waveform Length
250 MS/s Sample Rate
| Attribute | Value |
|---|---|
| Number of Channels | 2 |
| Frequency Range | 1 µHz to 100 MHz |
| Waveform Types | Sine, Square, Pulse, Ramp, Triangle, Noise, DC, and 12 predefined waveforms |
| Arbitrary Waveform Length | Up to 128K points per channel |
| Sample Rate | 250 MS/s |
| Amplitude Range | 1 mVpp to 10 Vpp (into 50 Ω) |
| Vertical Resolution | 14 bits |
| Modulation Types | AM, FM, PM, FSK, PWM, Sweep, and Burst |
| Output Impedance | 50 Ω |
| Connectivity/Interfaces | USB, GPIB, and LAN (LXI compliant) |
| Model | AFG3102 |
|---|
The Tektronix AFG3102 is a dual-channel arbitrary waveform generator offering 100 MHz sine waveforms, up to 1 GS/s sampling rate, and 14‑bit resolution for precise signal fidelity.
With its intuitive interface, 5.6″ color display, and comprehensive modulation modes including AM, FM, PM, and PWM, it supports design, simulation, and education applications.
Testwall can supply the used Tektronix AFG3102, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG3102.
