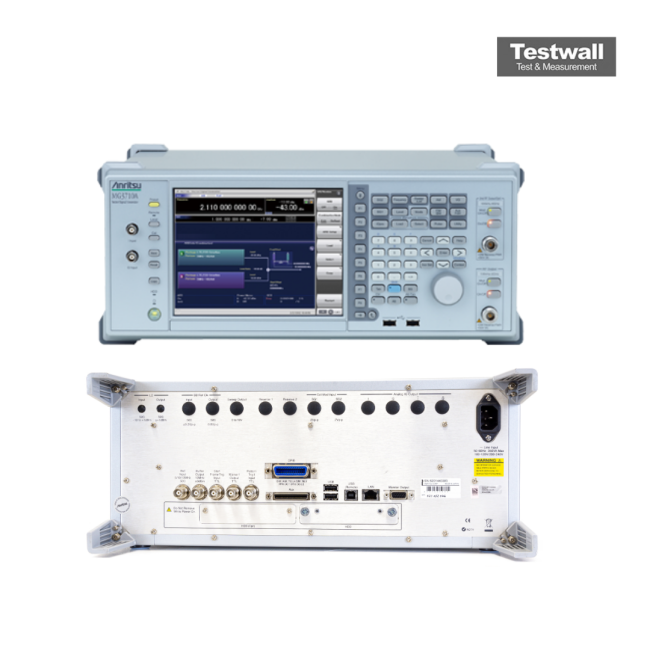

Anritsu MG3710A (100KHz-6GHz)
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 2.7 GHz / 4 GHz / 6 GHz (depending on configuration) |
| Output Power Range | -144 dBm to +26 dBm (CW mode, frequency dependent) |
| Frequency Resolution | 0.01 Hz |
| Phase Noise | -130 dBc/Hz at 20 kHz offset (1 GHz carrier, typical) |
| Modulation Types | AM, FM, PM, Pulse Modulation, IQ Modulation (vector signal generation) |
| Baseband Generator | Optional internal dual baseband generators with up to 160 MHz RF modulation bandwidth |
| Waveform Memory | Up to 256 MSa (with optional memory expansion) |
| Number of RF Outputs | Up to 2 independent RF output channels (dual RF option) |
| Spurious Emissions | -60 dBc or better (non-harmonic spurious, typical) |
| Interface / Connectivity | GPIB, USB, LAN (LXI compliant), with support for remote control via SCPI commands |
Anritsu MG3710A Options:
- MG3710A - 001 - High Stability Reference Oscillator (OCXO)
- MG3710A - 002 - Standard Reference Oscillator (TCXO)
- MG3710A - 017 - LO In/Out, BB Ref In/Out, Sweep Out
- MG3710A - 018 - External I/Q Input
- MG3710A - 021 - BER Measurement Function
- MG3710A - 032 - 1st SG Frequency Range 9 kHz to 2.7 GHz
- MG3710A - 034 - 1st SG Frequency Range 9 kHz to 4 GHz
- MG3710A - 036 - 1st SG Frequency Range 9 kHz to 6 GHz
- MG3710A - 041 - 1st SG High Power Extension
- MG3710A - 042 - 1st SG Low Power Extension
- MG3710A - 043 - 1st SG Reverse Power Protection
- MG3710A - 045 - 1st SG Waveform Memory Extension (256 Msamples)
- MG3710A - 046 - 1st SG Waveform Memory Extension (1024 Msamples)
- MG3710A - 048 - 1st SG Combination of Baseband Signal Function
- MG3710A - 049 - 1st SG AWGN Generation Function
- MG3710A - 050 - 1st SG Additional Analog Modulation Input
- MG3710A - 062 - 2nd SG Frequency Range 9 kHz to 2.7 GHz
- MG3710A - 064 - 2nd SG Frequency Range 9 kHz to 4 GHz
- MG3710A - 066 - 2nd SG Frequency Range 9 kHz to 6 GHz
- MG3710A - 071 - 2nd SG High Power Extension
- MG3710A - 072 - 2nd SG Low Power Extension
- MG3710A - 073 - 2nd SG Reverse Power Protection
- MG3710A - 075 - 2nd SG Waveform Memory Extension (256 Msamples)
- MG3710A - 076 - 2nd SG Waveform Memory Extension (1024 Msamples)
- MG3710A - 078 - 2nd SG Combination of Baseband Signal Function
- MG3710A - 079 - 2nd SG AWGN Generation Function
- MG3710A - 080 - 2nd SG Additional Analog Modulation Input
| Model | MG3710A |
|---|
The Anritsu MG3710A is a high‑precision vector signal generator covering 100 kHz to up to 6 GHz (per option), with ultra‑fine 0.01 Hz resolution and fast <600 μs switching. A wide vector modulation bandwidth of 120–160 MHz, built‑in baseband, and large waveform memory—64 Msamples expandable to 1,024 Msamples—enable complex scenarios. Optional dual RF outputs and dual‑waveform memory support multi‑signal tests. The unit achieves –71 dBc ACLR and –131 dBc/Hz SSB phase noise for demanding measurements.
Ideal for R&D and manufacturing, it generates simultaneous wanted/interferer or MIMO signals, streamlining setups and reducing cost. Pre‑loaded waveforms span LTE, W‑CDMA, GSM/EDGE, Bluetooth, GPS, WLAN, Mobile WiMAX, ISDB and more for rapid standard‑compliant testing.
Testwall can supply the used Anritsu MG3710A, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MG3710A.
