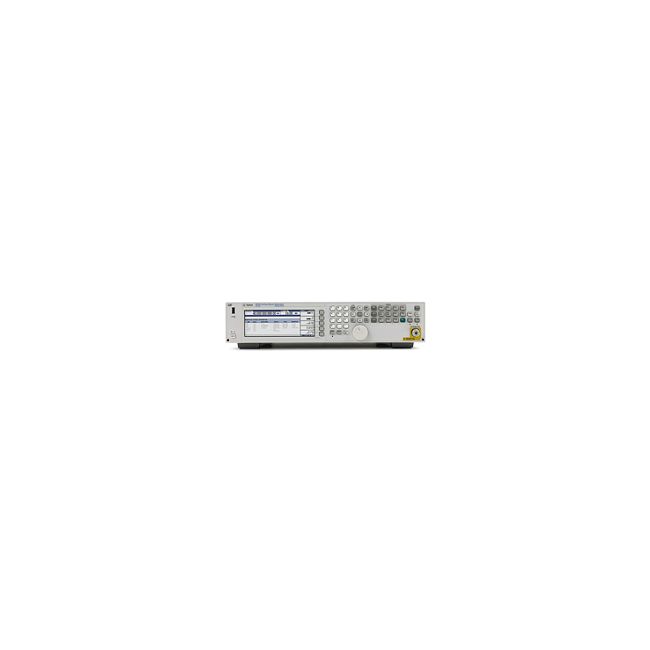

Keysight (Agilent) N5183A
| Attribute | Value |
|---|---|
| Frequency Resolution | 0.01 Hz |
| Harmonics | -54 dBc (spec.) at 2 to 20 GHz |
| Sweep Modes | step sweep, list mode |
| Timebase Aging | < ±1 × 10⁻⁶ per year |
| Interfaces | GPIB, LAN (LXI), USB |
| Frequency Range | 100 kHz to 20, 31.8 or 40 GHz |
| Output Power | -130 to +11 dBm (depending on configuration) |
| SSB Phase Noise | -95 dBc/Hz at 10 GHz, 20 kHz offset (spec.); -98 dBc/Hz (typ.) |
| Modulation | AM, FM, ΦM, pulse (depending on configuration) |
| Level Accuracy | ±0.6 dB to 2 GHz; ±0.9 dB at 2 to 20 GHz |
| Switching Speed | ≤ 5 ms |
| RF Output Connector | 3.5 mm male (depending on configuration) |
| Dimensions | 426 × 88 × 432 mm |
| Weight | 13.8 kg |
Available configurations
| Model | Frequency range | Configuration |
| N5183A-520 | 100 kHz to 20 GHz | Analog signal generator |
| N5183A-532 | 100 kHz to 31.8 GHz | Analog signal generator |
| N5183A-540 | 100 kHz to 40 GHz | Analog signal generator |
| N5183A-520 | 100 kHz to 20 GHz | Analog signal generator |
Keysight (Agilent) N5183A Options:
Options available for the Keysight (Agilent) MXG microwave analog signal generator (N5183A). Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- N5183A - 520 - Frequency range 100 kHz to 20 GHz
- N5183A - 532 - Frequency range 100 kHz to 31.8 GHz
- N5183A - 540 - Frequency range 100 kHz to 40 GHz
- N5183A - UNT - AM, FM and phase modulation
- N5183A - UNU - Pulse modulation
- N5183A - UNW - Narrow pulse modulation
- N5183A - 1E1 - Step attenuator
- N5183A - 1EA - High output power
- N5183A - 1ER - Flexible reference input
- N5183A - 1EM - RF output moved to rear panel
- N5183A - 006 - Instrument security
- N5183A - 1CM - Rack mount kit
- N5183A - 1CN - Front handle kit
- N5183A - 1CP - Rack mount kit with handles
The Keysight (Agilent) N5183A MXG microwave signal generator delivers up to 40 GHz frequency range with =900 µs switching time and +18 dBm output at 20 GHz. It supports AM, FM, pulse modulation with <10 ns rise/fall time, and is optimized for high-power broadband component testing.
Equipped with digital/step sweep, self-maintenance features, and multiple interfaces (LAN, USB, GPIB), it's ideal for LO substitution, CW interferer, and analog modulation scenarios.
Testwall can supply the used Keysight (Agilent) N5183A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5183A.
Options and configurations
- Frequency Range: 100 kHz to 20, 31.8 or 40 GHz (Opt. 520/532/540)
- Output Power: -130 to +11 dBm (Opt. 520, with Opt. 1E1); +19 dBm at 3.2 to 20 GHz with Opt. 1EA
- Modulation: AM, FM, ΦM (Opt. UNT), pulse (Opt. UNU/UNW)
- Switching Speed: ≤ 5 ms; ≤ 1.15 ms with Opt. UNZ
- RF Output Connector: 3.5 mm male (Opt. 520), 2.4 mm male (Opt. 532/540); Type-N with Opt. 1ED
