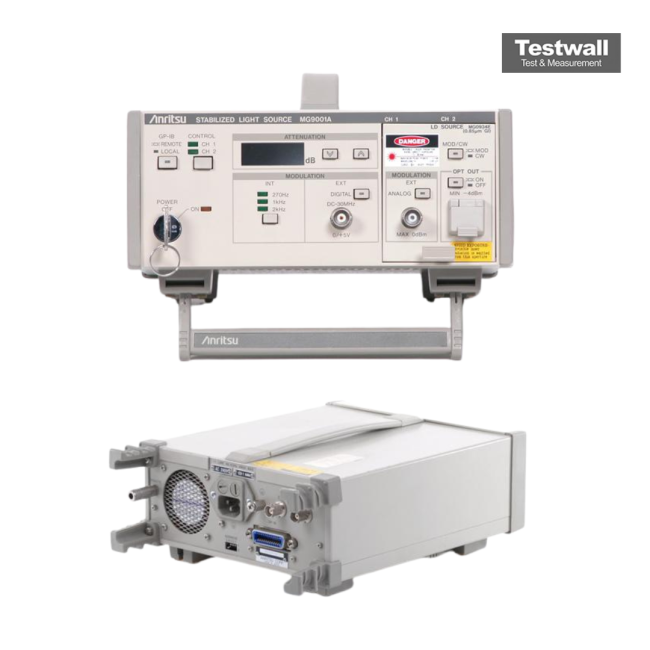

Anritsu MG9001A
| Attribute | Value |
|---|---|
| Wavelength Range | 1520 nm to 1620 nm |
| Output Power | +7 dBm (maximum) |
| Wavelength Accuracy | ±0.01 nm |
| Side Mode Suppression Ratio | >50 dB |
| Linewidth | <1 MHz |
| Optical Output Connector | FC/PC |
| Power Stability | ±0.01 dB (over 1 hour) |
| Tuning Speed | 50 nm/s (continuous sweep) |
| Operating Temperature | 0°C to 40°C |
| Interface | GPIB, RS-232C |
Anritsu MG9001A Options:
- MG9001A - MG900m-02 - Top cover for stacking
- MG9001A - MG0914E - LED Source, 0.85 µm, GI
- MG9001A - MG0917A - LED Source, 1.3 µm, GI/SM
- MG9001A - MG0917B - LED Source, 1.31 µm, GI/SM
- MG9001A - MG0918B - LED Source, 1.55 µm, GI/SM
- MG9001A - MG0917D - LED Source, 1.31 µm, GI/SM
- MG9001A - MG0918D - LED Source, 1.55 µm, GI/SM
- MG9001A - MG0927D - Edge-Emitting LED Source, 1.31 µm, SM
- MG9001A - MG0928D - Edge-Emitting LED Source, 1.55 µm, SM
- MG9001A - MG0927J - Edge-Emitting LED Source, 1.31 µm, SM
- MG9001A - MG0928J - Edge-Emitting LED Source, 1.55 µm, SM
- MG9001A - MZ5006A - DC-AC Inverter
- MG9001A - J0200B - FC Optical fiber cord, 2 m (FC-FC-2M-GI)
- MG9001A - J0439B - FC Optical fiber cord, 2 m (FC·PC-FC·PC-2M-GI)
- MG9001A - J0056B - FC Optical fiber cord, 2 m (FC-FC-2M-SM)
- MG9001A - J0635B - FC Optical fiber cord, 2 m (FC·PC-FC·PC-2M-SM)
- MG9001A - B0283 - Blank panel
| Model | MG9001A |
|---|
The Anritsu MG9001A is a stabilized light source engineered for high-precision applications, delivering outstanding output stability of 0.02 dB. It supports dual LED light source units, enabling versatile testing scenarios. With modulation capability, the instrument operates in GPIB remote interface or CW modes, offering internal modulation frequencies of 270 Hz, 1 kHz, and 2 kHz, alongside an external modulation interface for enhanced flexibility.
Ideal for optical component evaluation and system testing, the MG9001A provides reliable performance in demanding environments where stability and accuracy are essential.
Testwall can supply the used Anritsu MG9001A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MG9001A.
