Anritsu MH680A
| Attribute | Value |
|---|---|
| Compatible Instrument | Anritsu MT8820C, MT8821C Radio Communication Analyzer |
| Function | High Power Amplifier Unit for expanding transmitter output power range |
| Frequency Range | 700 MHz to 2.7 GHz |
| Output Power Range | Up to +35 dBm |
| Gain | Approximately 30 dB |
| Connector Type | N-Type (female) |
| Power Supply | Supplied via the host instrument (MT8820C/MT8821C) |
| Interface | Direct connection to the RF output port of the MT8820C/MT8821C |
| Application | Base station (BTS/NodeB/eNodeB) testing requiring high power RF signal output |
| Form Factor | External accessory module designed for use with Anritsu Radio Communication Analyzers |
| Model | MH680A |
|---|

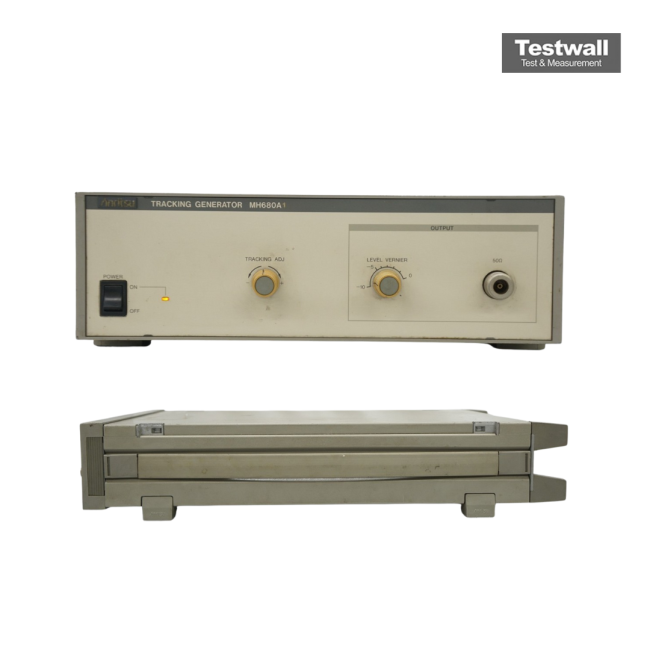

The Anritsu MH680A is a 2GHz tracking generator designed for integration with the MS610B spectrum analyzer. It enables accurate swept measurements by generating a stable RF signal that tracks the tuning of the analyzer. This makes it ideal for frequency response testing of RF components and systems. The MH680A delivers consistent performance across a wide frequency range, making it a valuable tool for high-frequency applications.
This unit supports seamless connection with the MS610B, extending the analyzer's functionality for testing filters, amplifiers, and other RF devices. Its compact and efficient design ensures reliable operation in demanding environments.
Testwall can supply the used Anritsu MH680A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MH680A.
