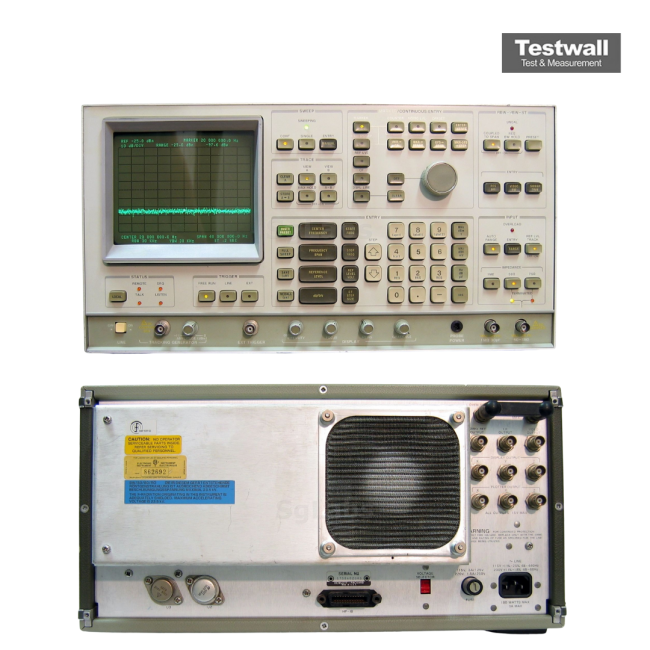

Keysight (Agilent) 3585A
| Attribute | Value |
|---|---|
| Frequency Range | 20 Hz to 40 MHz |
| Frequency Resolution | 1 Hz |
| Dynamic Range | 90 dB |
| Input Impedance | 50 Ohms or 1 MOhm |
| Amplitude Measurement Range | -120 dBm to +30 dBm |
| Resolution Bandwidth | 1 Hz to 3 MHz in 1-3-10 steps |
| Sweep Time | 20 ms to 100 s |
| Display | CRT display with 10 x 8 division graticule |
| Interface | HP-IB (IEEE-488) programmable |
| Power Requirements | 100/120/220/240 VAC, 48-66 Hz, 200 VA |
Keysight (Agilent) 3585A Options:
- 3585A - 907 - Front handle kit (Part No. 5062-3991)
- 3585A - 908 - Rack mounting kit (Part No. 5062-3979)
- 3585A - 909 - Front handle and rack mounting kit (Part No. 5062-3985)
- 3585A - 910 - Additional Operating Manual and Service Manual (Part No. 03585-90017 / 03585-90016)
- 3585A - 03585-84401 - Accessory Kit
- 3585A - 03585-61601 - Cable Assembly Extender (5 each)
- 3585A - 03585-61616 - Cable Assembly Adapter (1 each)
- 3585A - 1250-0669 - Jack to Jack Adapter (3 each)
- 3585A - 03585-66591 - PC Extender Board 43-pin
- 3585A - 03585-66590 - PC Extender Board 36-pin
- 3585A - 03585-66592 - PC Extender Board 18-pin
- 3585A - 03585-66595 - PC Extender Board 15-pin
- 3585A - 03585-66596 - PC Extender Board 15-pin
- 3585A - 03585-66593 - PC Extender Board 10-pin
- 3585A - 03585-66594 - PC Extender Board 6-pin
- 3585A - 1120A - Input Probe: 1:1 active probe, 100 kΩ shunted by 3 pf
- 3585A - 10021A - Input Probe: 1:1 passive probe for 50 Ω or 1 MΩ shunted by 70 pf
- 3585A - 10040A - Input Probe: 10:1 passive probe, 1 MΩ shunted by 9 pf
- 3585A - 11473A - Balancing Transformer: 75 Ω to 600 Ω WECO 310
- 3585A - 11473B - Balancing Transformer: 75 Ω to 600 Ω Siemens 9 REL STP-6AC
- 3585A - 11474A - Balancing Transformer: 75 Ω WECO 241
- 3585A - 11475A - Balancing Transformer: 75 Ω to 150 Ω Siemens 9 REL STP-6AC
- 3585A - 11476A - Balancing Transformer: 75 Ω to 124 Ω WECO 408A
- 3585A - 461A - Preamplifier: 20 dB or 40 dB gain, 1 kHz to 150 MHz
- 3585A - 465A - Preamplifier: 20 dB or 40 dB gain, 5 Hz to 1 MHz
- 3585A - 59307A - VHF Switch: one pair of single throw 4-pole switches
| Model | 3585A |
|---|
The Keysight (Agilent) 3585A Spectrum Analyzer covers a frequency range from 20Hz to 40.1MHz, featuring 3Hz to 30kHz resolution bandwidth and amplitude range of -137 to +30dBm. It offers exceptional accuracy, 80dB spurious-free dynamic range, and fully synthesized tuning for critical signal analysis at baseband frequencies.
Ideal for high-speed, high-density data processing environments, it includes a tracking generator and HPIB interface for efficient measurement integrity.
Testwall can supply the used Keysight (Agilent) 3585A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 3585A.
