Anritsu MP0121A
| Attribute | Value |
|---|---|
| Product Category | Optical Modulation Analyzer |
| Wavelength Range | 1480 nm to 1620 nm |
| Modulation Formats Supported | DP-QPSK, DP-16QAM, DP-64QAM, and other coherent modulation formats |
| Sampling Rate | Up to 160 GSa/s |
| Electrical Bandwidth | 70 GHz |
| Number of Optical Input Ports | 4 ports (Signal and Local Oscillator inputs) |
| Interface Compatibility | Compatible with Anritsu MP1800A Signal Quality Analyzer and external oscilloscopes |
| Polarization Diversity | Built-in polarization diversity optical hybrid for coherent detection |
| Data Rate Support | Up to 100 Gbps and beyond (supports next-generation high-speed optical transmission testing) |
| Optical Connector Type | FC/APC |
| Model | MP0121A |
|---|

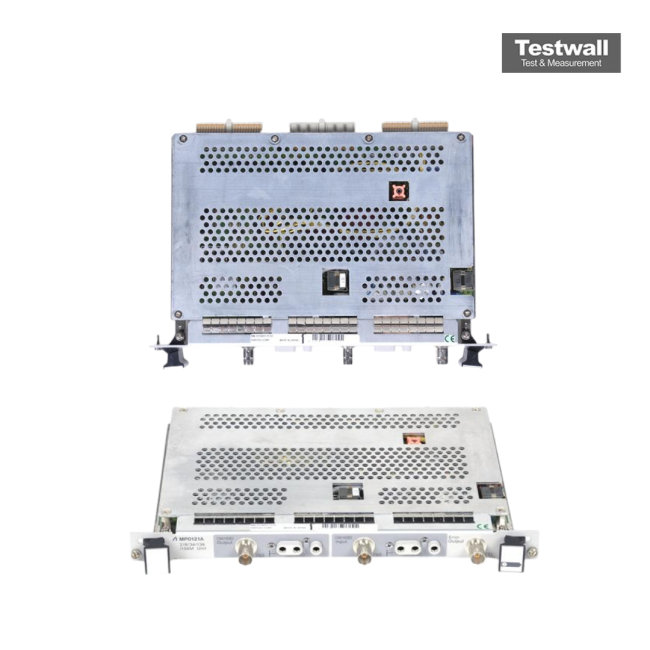

The Anritsu MP0121A is a communication analyzer designed for physical layer, circuit, and advanced technology testing. It functions as an Electrical Interface Module supporting PDH/SDH electrical signals at 2, 8, 34, 139, and 156 Mb/s. Compatible with MP1570A, MP1552B, and MP1555B mainframes, it offers comprehensive measurement and monitoring of data network equipment. Features include 16-bit programmability, WORD patterns of all 0s or 1s, and flexible operation modes including Single, Repeat, and Manual.
The Anritsu MP0121A supports error monitoring, alarm detection, and performance analysis in service, making it suitable for network operators, manufacturers, and testing engineers working on transmission systems.
Testwall can supply the used Anritsu MP0121A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP0121A.
