Keysight (Agilent) 8922S
| Attribute | Value |
|---|---|
| Frequency Range | 935 MHz to 960 MHz (GSM 900 Band) |
| RF Output Power Range | -130 dBm to -13 dBm |
| Measurement Functions | TX Power, Frequency Error, Phase/Frequency Error, Bit Error Rate (BER), Audio Measurements |
| Supported Standards | GSM 900, E-GSM 900 |
| RF Power Measurement Range | 0.01 W to 25 W (average burst power) |
| Frequency Accuracy | ±0.1 ppm (with internal reference) |
| Audio Frequency Range | 50 Hz to 15 kHz |
| Interface/Connectivity | GPIB (IEEE-488), RS-232 |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature Range | 0°C to 55°C (32°F to 131°F) |
Keysight Technologies 8922S Options:
- 8922S - 001 - High stability timebase
- 8922S - 002 - Transit protection (provides front panel cover, and extended rear feet)
- 8922S - 006 - Spectrum analyzer
- 8922S - 007 - Test SIM card
- 8922S - 008 - Micro test SIM card
- 8922S - 012 - Mobile station test software
- 8922S - 0B1 - Provides a total of two sets of user's guides (08922-90211), service manuals (08922-90213) and programmers reference guide (08922-90212)
- 8922S - 0B3 - Adds service manual (08922-90213)
- 8922S - AX4 - Rack mount flange kit (5062-4072)
| Model | 8922S |
|---|

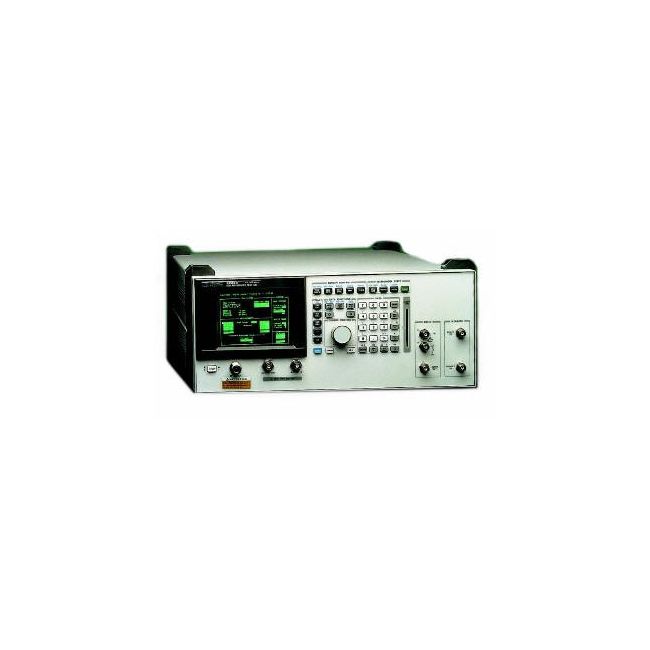

The Keysight (Agilent) 8922S is a comprehensive GSM mobile station test set integrating a GSM base station emulator with full signalling capabilities, enabling complete mobile testing without external tools. It supports Phase II, HSCSD, and Enhanced Full-rate Speech, and includes spectrum and audio analyzers, GP-IB control, and electronic attenuators for superior accuracy and repeatability.
Ideal for incoming inspections and mobile repairs, it allows one-button call setup from power-on and covers DCS1800 and PCS1900 bands when paired with an Agilent 83220A/E.
Testwall can supply the used Keysight (Agilent) 8922S, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8922S.
