Anritsu MP0122A
| Attribute | Value |
|---|---|
| Instrument Type | Optical Modulation Analyzer / Coherent Receiver |
| Wavelength Range | 1520 nm to 1620 nm |
| Modulation Formats Supported | QPSK, 16QAM, 64QAM, DP-QPSK, DP-16QAM, NRZ, Duobinary |
| Electrical Bandwidth | Up to 43 GHz |
| Sampling Rate | Up to 160 GSa/s |
| Number of Input Ports | 4 Balanced Optical Input Ports (Dual Polarization) |
| Local Oscillator Input | External Local Oscillator (LO) Input via Single-Mode Fiber |
| Interface / Connectivity | Compatible with Anritsu MP1800A Signal Quality Analyzer and external oscilloscopes |
| Maximum Input Power | +10 dBm per port |
| Application | Coherent optical transmission testing, advanced modulation format analysis, 100G/400G network component evaluation |
Anritsu MP0122A Options:
- MP0122A - 07 - MUX/DEMUX (1.5/45 Mbit/s)
- MP0122A - 90 - Extended three year warranty service
| Model | MP0122A |
|---|

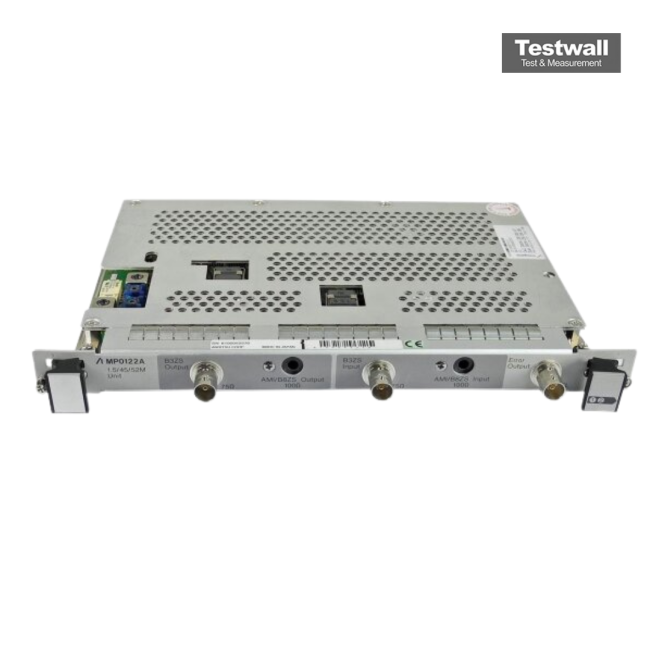

The Anritsu MP0122A is a PDH Electrical Interface Module designed for use in the Anritsu MP1552B, MP1555B, and MP1570A systems, specifically fitting into slot number 2. It supports the generation of North American electrical signals ranging from 1.544 Mbps to 45 Mbps, making it an essential component for SONET testing and signal handling.
Engineered for compatibility and reliable performance, the Anritsu MP0122A allows efficient testing and signal simulation across multiple transmission rates, ensuring precise evaluation of telecommunication systems.
Testwall can supply the used Anritsu MP0122A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP0122A.
