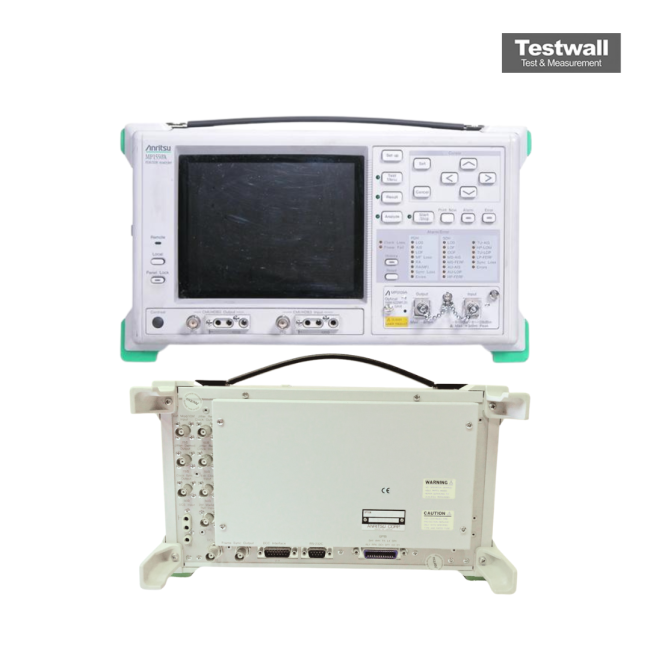

Anritsu MP1550A
| Attribute | Value |
|---|---|
| Instrument Type | SDH/SONET Analyzer |
| Bit Rates Supported | SDH STM-0 to STM-16 / SONET STS-1 to OC-48 |
| Maximum Line Rate | 2.488 Gbps (OC-48/STM-16) |
| Interface Types | Electrical and Optical interfaces supported |
| Optical Wavelength | 1310 nm and 1550 nm |
| Error Analysis | BER measurement, bit error insertion, alarm generation and detection |
| Tributary Testing | PDH tributary access and testing including 1.5M, 2M, 34M, 45M, 140M |
| Display | Built-in color LCD display with graphical user interface |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Form Factor | Portable benchtop unit |
Anritsu MP1550A Options:
- MP1550A - 01 - RS-232C
- MP1550A - 02 - GPIB
- MP1550A - 03 - Ethernet
- MP1550A - 05 - SDH/SONET
- MP1550A - 06 - MUX/DEMUX (2/8/34/139 Mb/s, for MP0121A)
- MP1550A - 07 - MUX/DEMUX (1.5/45 Mb/s, for MP0122A/B)
- MP1550A - 08 - 45M-2M MUX/DEMUX (requires MP0121A and MP0122A/B)
- MP1550A - 09 - VC11-384k mapping (for MP0122A/B)
- MP1550A - 12 - VC2-6M mapping
- MP1550A - 15 - Video output
- MP1550A - 16 - 64k lock
- MP1550A - 17 - Japan ESF (requires MP0122A or MP0122B)
| Model | MP1550A |
|---|
The Anritsu MP1550A is a compact PDH/SDH analyzer offering complete test functions such as bit error, alarms, pointers, performance, jitter, and wander. Its large color LCD ensures easy operation, while the built-in printer and floppy drive enhance usability. Supporting both in-service and out-of-service measurements, it allows simultaneous error and alarm monitoring across multiple layers with advanced trouble search functions.
Lightweight and portable, the Anritsu MP1550A is ideal for pre-shipment inspections, on-site construction testing, acceptance tests, and periodic maintenance of PDH/SDH systems.
Testwall can supply the used Anritsu MP1550A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1550A.
