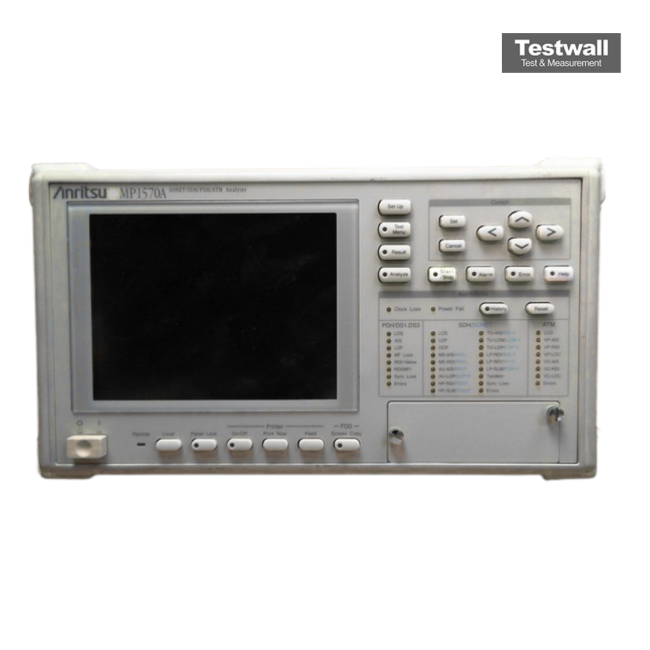

Anritsu MP1570A
| Attribute | Value |
|---|---|
| Bit Rates Supported | 51.84 Mbps to 9.953 Gbps (STM-0/1/4/16/64, OC-1/3/12/48/192) |
| Interface Types | SDH, SONET, PDH, ATM, and Ethernet |
| Optical Interface | Single-mode and multimode fiber optical interfaces supported |
| Electrical Interface | Supports G.703 electrical interfaces for PDH signals |
| Measurement Functions | BER testing, jitter measurement, alarm detection, and error analysis |
| Jitter Measurement | Jitter tolerance and jitter transfer measurement per ITU-T G.825 and Bellcore GR-253 |
| ATM Testing | ATM cell analysis, traffic generation, and quality of service (QoS) measurement |
| Standards Compliance | ITU-T G.707, G.957, G.958, ANSI T1.105, Bellcore GR-253 |
| Display | Color LCD touchscreen display for intuitive operation and result viewing |
| Power Supply | AC 100–240 V, 50/60 Hz universal power supply |
Anritsu MP1570A Options:
- MP1570A - 01 - RS-232C
- MP1570A - 02 - GPIB
- MP1570A - 03 - Ethernet
- MP1570A - 04 - VGA output
- MP1570A - 06 - MUX/DEMUX (2/8/34/139 Mb/s) For MP0121A
- MP1570A - 07 - MUX/DEMUX (1.5/45 Mb/s) For MP0122A/B
- MP1570A - 08 - 45M-2M MUX/DEMUX (Requires MP0121A and MP0122A/B)
- MP1570A - 09 - Japan mapping (Requires MP0122A or MP0122B)
- MP1570A - 10 - SDH
- MP1570A - 11 - SONET
- MP1570A - 13 - Frame memory capture (156M/622M)
- MP0124A - 01 - RMS measurement
- MP0125A - 01 - RMS measurement
- MP0126A - 01 - RMS measurement
- MP0130A - 01 - RMS measurement
- MP0124A - 02 - Wander measurement
- MP0125A - 02 - Wander measurement
- MP0126A - 02 - Wander measurement
- MU150008A - 01 - Frame memory capture (2.5G)
- MU150009A - 01 - Frame memory capture (2.5G)
- MU150010A - 01 - Frame memory capture (2.5G)
- MU150000A - 01 - Frame memory capture (2.5G/10G)
- MU150001A/B - 01 - 2.5G (1.31)
- MU150001A/B - 02 - 2.5G (1.55)
- MU150001A/B - 03 - 2.5G (1.31/1.55)
- MU150002A - 01 - 2.5G
| Model | MP1570A |
|---|
The Anritsu MP1570A is a versatile analyzer for SONET, SDH, PDH, and ATM systems, featuring a plug-in modular architecture with flexible configuration. It supports concatenated payloads from OC-3c/STM-1c to OC-192c/STM-64c and offers advanced options like POS and IPOA for real-time traffic analysis. Equipped with optical TX modules at 1310 nm and high-output 1550 nm, it covers 1.5 Mb/s to 10 Gb/s, jitter/wander measurements, APS switch timing, and supports DWDM testing.
Its compact, portable design eliminates the need for multiple instruments, enabling seamless global testing across SONET, SDH, and Japanese mappings. Features such as CID pattern, mixed payload, through-mode, and tandem connection monitoring streamline R&D and manufacturing workflows.
Testwall can supply the used Anritsu MP1570A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1570A.
