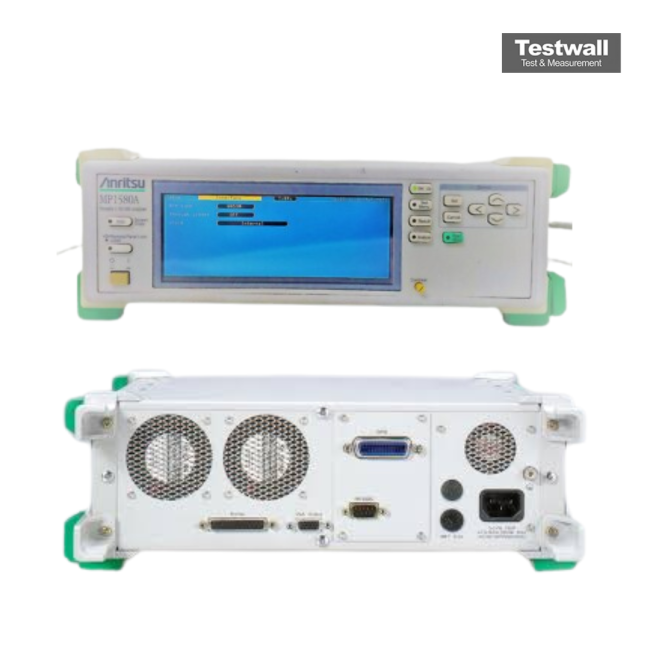

Anritsu MP1580A Portable Analyzer with 1 - 2 - 04
| Attribute | Value |
|---|---|
| Interface | SDH/SONET |
| Bit Rates Supported | 51.84 Mbit/s to 2.488 Gbit/s (STM-1/4/16, OC-1/3/12/48) |
| Configuration | 1 - 2 - 04 (Portable Analyzer with specific module options) |
| Optical Interfaces | Single-mode and multimode fiber support |
| Measurement Functions | BER testing, alarm detection, performance monitoring, pointer analysis |
| Error Analysis | B1, B2, B3 byte error measurement, REI, BIP error detection |
| Tributary Testing | PDH tributary access and testing up to 140 Mbit/s |
| Display | Built-in color LCD display with graphical interface |
| Power Supply | AC adapter and rechargeable battery for portable field operation |
| Compliance Standards | ITU-T G.707, G.783, G.826, ANSI T1.105, Telcordia GR-253 |
| Model | MP1580A |
|---|
The Anritsu MP1580A is the world's smallest jitter and wander analyzer, designed for SONET/SDH systems at OC-48/STM-16 and OC-192/STM-64 rates. It measures jitter at 2.5 Gb/s and 10 Gb/s with full compliance to Bellcore GR-1377 and ITU-T O.172 standards. Supporting up to 80 MHz jitter bandwidth and 4000 UIp-p modulation amplitude, it ensures accurate high-speed signal analysis.
Optional wander measurement at 2.5 Gb/s and 10 Gb/s is possible using MX150002A software on an external PC, with real-time MTIE and TDEV calculations, plus Holdover, Wander Tolerance, and Wander Transfer testing.
Testwall can supply the used Anritsu MP1580A Portable Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1580A Portable Analyzer.
