Anritsu

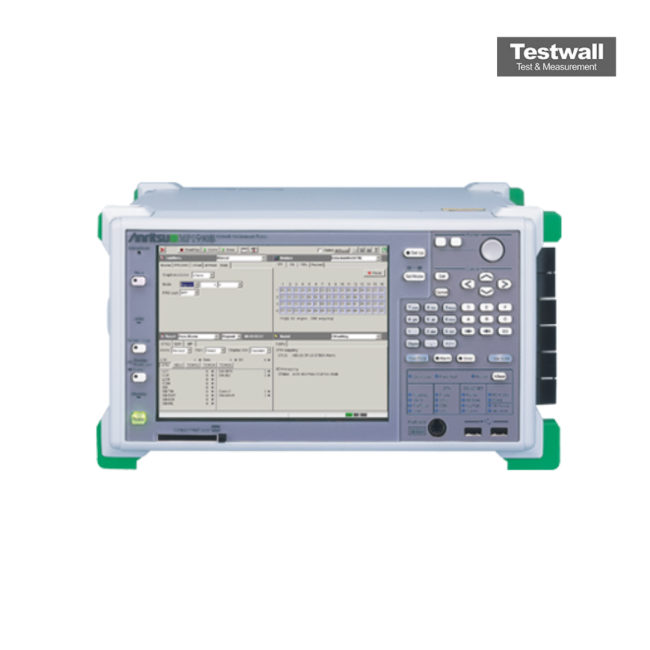

Anritsu MP1590B
Data Quality Analyser
Up to 10 Gbps Bit Rate
SDH/SONET, PDH/DSn, ATM, Ethernet Interface
STM-1/4/16/64, OC-1/3/12/48/192 Signal Hierarchy
BER Testing, Error Analysis, Alarm Detection, Performance Monitoring Measurement Functions
PRBS (2^7-1 to 2^31-1), User-defined patterns Pattern Generation
| Attribute | Value |
|---|---|
| Bit Rate | Up to 10 Gbps |
| Interface | SDH/SONET, PDH/DSn, ATM, Ethernet |
| Signal Hierarchy | STM-1/4/16/64, OC-1/3/12/48/192 |
| Measurement Functions | BER Testing, Error Analysis, Alarm Detection, Performance Monitoring |
| Pattern Generation | PRBS (2^7-1 to 2^31-1), User-defined patterns |
| Optical Interface | Single-mode and Multi-mode fiber support |
| Wavelength Support | 1310 nm and 1550 nm |
| Display | Color LCD touchscreen display |
| Connectivity | GPIB, RS-232, Ethernet (LAN) remote control interfaces |
| Power Supply | AC 100–240 V, 50/60 Hz |
Anritsu MP1590B Options:
- MP1590B - 01 - RS-232C
- MP1590B - 02 - GPIB
- MP1590B - 03 - LAN
- MP1590B - 07 - OSPF Protocol
- MP1590B - 08 - MPLS (LDP/CR-LDP) Protocol
- MP1590B - 09 - MPLS (RSVP) Protocol
- MP1590B - 10 - RFC2889 Benchmarking Test
- MP1590B - 11 - Packet BER Test
- MP1590B - 12 - IPv6 Expansion
- MP1590B - 13 - XENPAK Test
- MP1590B - 14 - IGAP Protocol
- MP1590B - 15 - Auto negotiation Analysis
- MP1590B - 16 - Link Fault Signaling
- MP1590B - 30 - High Precision Jitter Analysis
- MU150100A - 01 - Wavelength 1.31 µm
- MU150100A - 02 - Wavelength 1.55 µm
- MU150100A - 03 - Wavelength 1.31/1.55 µm
- MU150100A - 04 - Optical output power adjustable
- MU150100A - 05 - OTU1/OTU2
- MU150100A - 07 - 10/10.7G Minus Option
- MU150100A - 08 - 10.3G
- MU150100A - 09 - Insert/Extract
- MU150100A - 38 - ST connector
- MU150100A - 39 - DIN connector
- MU150100A - 40 - SC connector
- MU150100A - 43 - HMS-10/A connector
- MU150101A - 01 - Wavelength 1.31 µm
- MU150101A - 02 - Wavelength 1.55 µm
- MU150101A - 03 - Wavelength 1.31/1.55 µm
- MU150101A - 04 - Optical output power adjustable
- MU150101A - 05 - OTU1
- MU150101A - 06 - GFP-F/LEX/LAPS
- MU150101A - 07 - POS
- MU150101A - 11 - HO Virtual Concatenation
- MU150101A - 12 - LO Virtual Concatenation
- MU150101A - 13 - LCAS
- MU150101A - 14 - Differential Delay
- MU150101A - 38 - ST connector
- MU150101A - 39 - DIN connector
- MU150101A - 40 - SC connector
- MU150101A - 43 - HMS-10/A connector
- MU150121A - 01 - Wavelength 1.31 µm
- MU150121A - 02 - Wavelength 1.55 µm
- MU150121A - 03 - Wavelength 1.31/1.55 µm
- MU150121A - 04 - Optical output power adjustable
- MU150121A - 38 - ST connector
- MU150121A - 39 - DIN connector
- MU150121A - 40 - SC connector
- MU150121A - 43 - HMS-10/A connector
- MU150121B - 01 - Wavelength 1.31 µm
- MU150121B - 02 - Wavelength 1.55 µm
- MU150121B - 03 - Wavelength 1.31/1.55 µm
- MU150121B - 04 - Optical output power adjustable
- MU150121B - 38 - ST connector
- MU150121B - 39 - DIN connector
- MU150121B - 40 - SC connector
- MU150121B - 43 - HMS-10/A connector
- MU150122A - 38 - ST connector
- MU150122A - 39 - DIN connector
- MU150122A - 40 - SC connector
- MU150122A - 43 - HMS-10/A connector
- MU150123A - 05 - OTU2
- MU150123A - 38 - ST connector
- MU150123A - 39 - DIN connector
- MU150123A - 40 - SC connector
- MU150123A - 43 - HMS-10/A connector
- MU150123B - 05 - OTU2
- MU150123B - 38 - ST connector
- MU150123B - 39 - DIN connector
- MU150123B - 40 - SC connector
- MU150123B - 43 - HMS-10/A connector
- MU150124B - 38 - ST connector
- MU150124B - 39 - DIN connector
- MU150124B - 40 - SC connector
- MU150124B - 43 - HMS-10/A connector
- MU150125A - 01 - Wander measurement
- MU150125A - 05 - OTU1/OTU2
- MU150125A - 06 - 10.3G
- MU150134A - 04 - Optical output power adjustable
- MU150134A - 38 - ST connector
- MU150134A - 39 - DIN connector
- MU150134A - 40 - SC connector
- MU150134A - 43 - HMS-10/A connector
| Model | MP1590B |
|---|
The Anritsu MP1590B Communication Analyzer delivers advanced testing for PDH, DSn, SDH/SONET, and OTN systems, while also supporting Ethernet up to 10 GbE via MD1230A plug-in modules. It integrates jitter measurement, EoS, virtual concatenation, and LCAS for next-generation network testing, making it an all-in-one solution for telecom environments.
Engineered for flexibility, the MP1590B enables simultaneous SDH/SONET, OTN, EoS, jitter, and Ethernet applications using various plug-in unit combinations, ensuring maximum efficiency in test workflows.
Testwall can supply the used Anritsu MP1590B Communication Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1590B Communication Analyzer.
