Anritsu MP1632A
| Attribute | Value |
|---|---|
| Bit Rate Range | 50 Mbps to 3.2 Gbps |
| Number of Channels | Up to 4 channels (expandable) |
| Pattern Length | 2^7-1 to 2^31-1 PRBS, programmable word patterns |
| Output Voltage (High) | 0.5 V to 1.75 V (into 50 Ω) |
| Output Voltage (Low) | -2.0 V to 0.5 V (into 50 Ω) |
| Jitter (RMS) | Less than 3 ps RMS |
| Input Sensitivity | 100 mV (minimum, single-ended) |
| Clock Source | Internal and external clock reference supported |
| Interface | GPIB (IEEE 488.2) remote control interface |
| Operating Temperature | 0°C to 40°C |
Anritsu MP1632A Options:
- MP1632A - 01 - GPIB interface board
- MP1632A - 02 - Ethernet interface board
- MP1632A - 03 - 3.2G internal synthesizer
| Model | MP1632A |
|---|

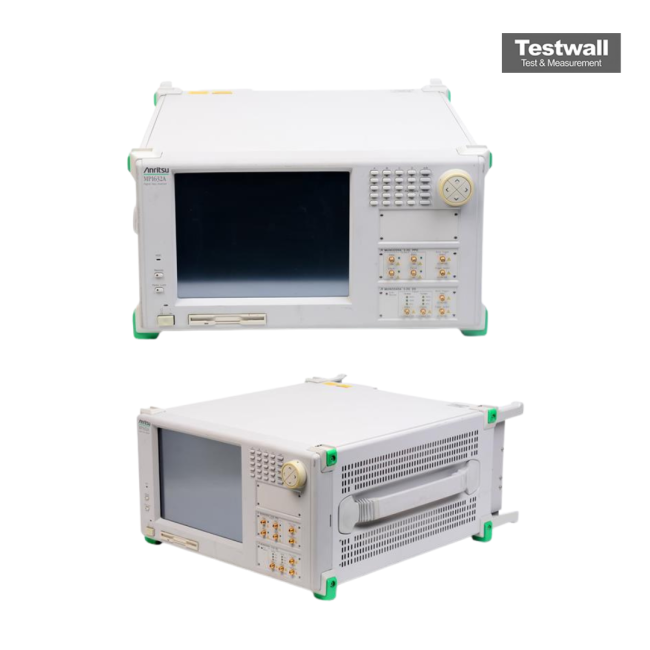

The Anritsu MP1632A Digital Analyzer is a compact and lightweight analyzer combining a transmitter and receiver for error detection in high-speed digital data up to 3.2 GHz. It supports both continuous and burst signals, offering advanced measurement capabilities for optical circuit testing beyond conventional BERTs. With integrated 3.2 Gb/s PPG and ED, frequency range from 50 MHz to 3.2 GHz, and support for eye diagram measurement, it is an ideal alternative to HP 71603B.
Designed for STM-16/OC-48 (2.488 Gbit/s), Fibre Channel, and Gigabit Ethernet applications, it provides a reliable solution for testing transfer devices, optical modules, and logic components in production environments.
Testwall can supply the used Anritsu MP1632A Digital Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1632A Digital Analyzer.
