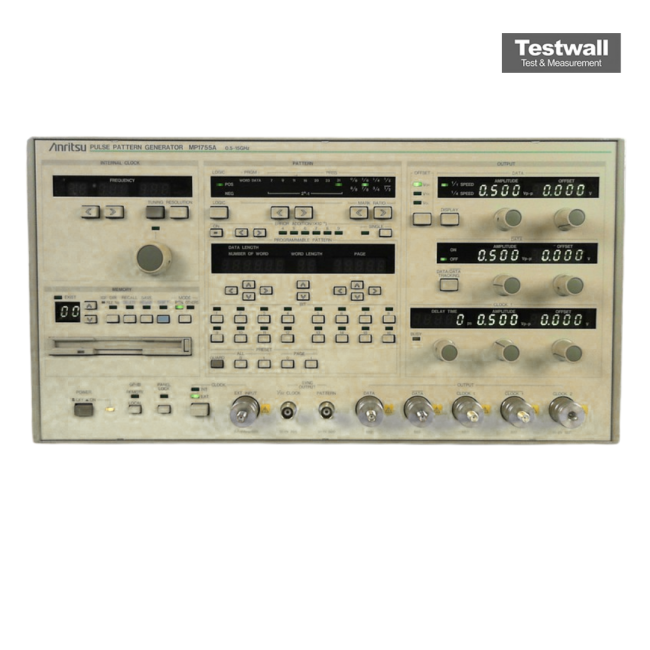

Anritsu MP1755A
| Attribute | Value |
|---|---|
| Bit Rate | Up to 12.5 Gbit/s |
| Data Pattern | PRBS (2^7-1, 2^10-1, 2^15-1, 2^23-1, 2^31-1), Zero Substitution, and Programmable Word Patterns |
| Output Amplitude | 0.5 V to 2.0 V (into 50 Ω) |
| Output Impedance | 50 Ω |
| Rise/Fall Time | Less than 35 ps (20% to 80%) |
| Jitter (RMS) | Less than 3 ps RMS |
| Clock Source | Internal or External Clock Reference |
| Interface | GPIB (IEEE 488.2) |
| Operating Temperature | 0°C to +50°C |
| Power Requirements | 100 to 240 VAC, 50/60 Hz |
| Model | MP1755A |
|---|
The Anritsu MP1755A is a high-performance error detector designed for use with the MP1756A, supporting ITU-T standard evaluations. Operating from 0.5 to 15 GHz with an external clock, it delivers high-quality waveforms, generates PRBS patterns, and detects errors in intervals as short as 0.1 seconds. With zero wait time counter gate and advanced auto search functionality, it simplifies threshold and phase adjustments at the touch of a button.
This instrument is ideally suited for research and development of ultrahigh-speed logic ICs and digital communications, ensuring precise and efficient performance across complex testing environments.
Testwall can supply the used Anritsu MP1755A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1755A.
