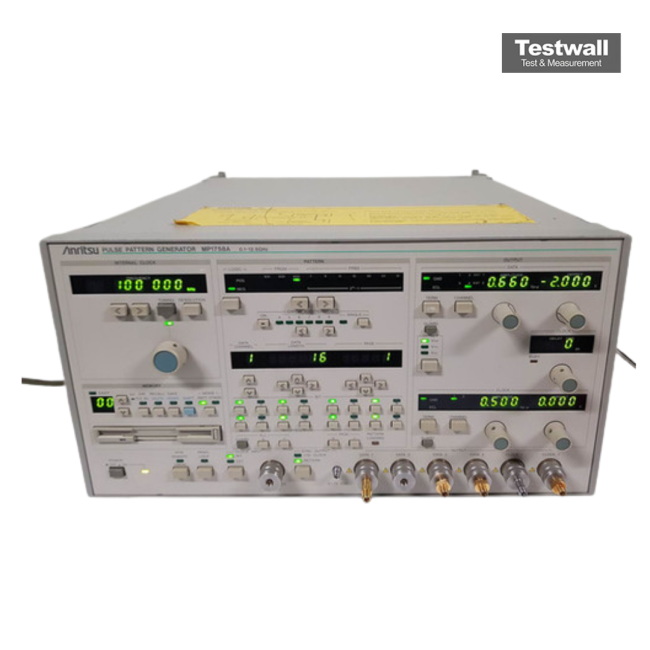

Anritsu MP1758A
| Attribute | Value |
|---|---|
| Bit Rate | Up to 12.5 Gbit/s |
| Data Pattern | PRBS (2^7-1, 2^10-1, 2^15-1, 2^23-1, 2^31-1), Zero Substitution, Data (16 to 2^20 bits) |
| Output Amplitude | 0.5 V to 2.0 V (into 50 Ω) |
| Output Connector | SMA (female) |
| Clock Source | Internal or External |
| Interface | GPIB, RS-232C |
| Operating Temperature | 0°C to 40°C |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Dimensions (W × H × D) | 426 mm × 177 mm × 451 mm |
| Weight | Approximately 18 kg |
Anritsu MP1758A Options:
- MP1758A - 01 - CLOCK/CLOCK output (factory option)
- MP1758A - 02 - Cross point adjustment (factory option)
| Model | MP1758A |
|---|
The Anritsu MP1758A offers four independently adjustable data output channels plus two clock outputs. It supports programmable patterns up to 128 K bits and seven pseudo-random sequences from 2⁷-1 to 2³¹-1, each with a ¼-phase offset per channel. Output amplitude ranges from 0.5 to 2.0 Vp-p, offset voltage from –2.0 to +2.0 VOH, and data-to-clock delay is finely tunable between –500 to +500 ps—enabling precise signal timing and waveform control.
Equipped with a built-in synthesized clock signal for stable waveform generation, the MP1758A excels in PRBS testing. Its exceptional configurability in amplitude, offset, and delay makes it ideal for advanced communication systems development and high-fidelity signal integrity evaluations.
Testwall can supply the used Anritsu MP1758A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1758A.
