Tektronix DTGM30
| Attribute | Value |
|---|---|
| Module Type | Digital Pattern Generator Module |
| Compatible Series | Tektronix MSO5, MSO6 Series Oscilloscopes |
| Number of Output Channels | 32 Channels |
| Maximum Clock Frequency | 100 MHz |
| Output Voltage Levels | 1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V, 5.0 V |
| Pattern Depth (Memory) | Up to 128 Mbit per channel |
| Output Drive Current | ±24 mA |
| Supported Logic Families | LVCMOS, LVTTL, and other standard logic families |
| Interface Connection | Oscilloscope rear module slot (plug-in module) |
| Trigger Synchronization | Synchronized with oscilloscope trigger system for correlated stimulus/response testing |
| Model | DTGM30 |
|---|

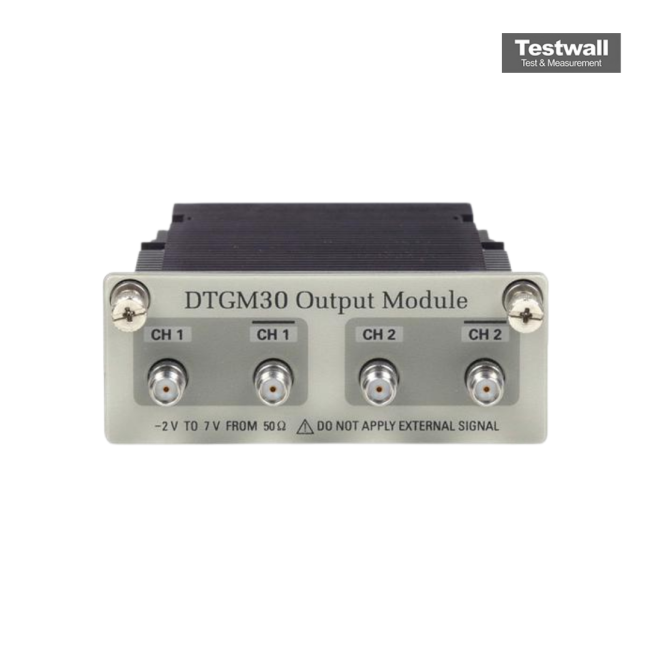

The Tektronix DTGM30 2 Channel Output Module delivers precise two-channel signal generation, engineered for advanced testing applications requiring accurate timing and waveform control. It supports a wide range of output configurations, ensuring compatibility with complex systems and high-speed measurement environments, providing stable and repeatable signal outputs.
Ideal for demanding laboratory and production environments, this module is designed for precision pulse pattern generation, allowing engineers to achieve consistent and reproducible results.
Testwall can supply the used Tektronix DTGM30 2 Channel Output Module, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DTGM30 2 Channel Output Module.
