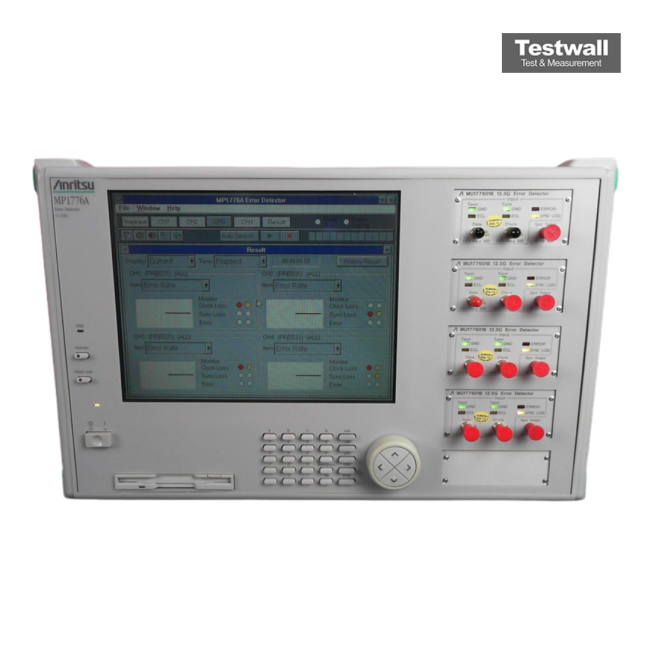

Anritsu MP1776A
| Attribute | Value |
|---|---|
| Bit Rate | 9.95328 Gbps to 10.7 Gbps |
| Interface | 10 Gbps Ethernet / OC-192 / STM-64 |
| Optical Output Wavelength | 1550 nm |
| Optical Output Power | -3 dBm to +2 dBm |
| Receiver Sensitivity | -18 dBm (typical) |
| Measurement Functions | Bit Error Rate (BER) measurement, Optical power monitoring |
| Connector Type | SC/PC optical connector |
| Clock Recovery | Built-in optical clock recovery circuit |
| Operating Temperature | 0°C to +40°C |
| Power Supply | AC 100V to 240V, 50/60 Hz |
| Model | MP1776A |
|---|
The Anritsu MP1776A Error Detector is a 4-channel error detector supporting bit error rate (BER) testing from 100 Mbps to 12.5 Gbps per channel, and up to 50 Gbps in combined mode. It offers independent, dual, and quad-channel configurations with full programmability for PRBS, Zero Substitution, and Consecutive Zero patterns. Its Windows-based GUI, touchscreen, rotary encoder, and SCPI remote control ensure efficient operation.
Designed for advanced telecom and optical testing, it supports SONET/SDH analysis up to OC-768c/STM-256c with optional MX177601A software, and integrates with Anritsu’s ME7760B and ME7780A systems for high-speed BER testing up to 48 Gbps.
Testwall can supply the used Anritsu MP1776A Error Detector, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP1776A Error Detector.
