Anritsu MP2110A
| Attribute | Value |
|---|---|
| Data Rate | Up to 28.2 Gbps (supports 100G Ethernet, OTU4, and InfiniBand EDR) |
| Measurement Functions | BER (Bit Error Rate) measurement, Eye diagram analysis, Jitter analysis, Waveform analysis |
| Optical Interface | Supports single-mode and multimode fiber; CFP2, QSFP28, and SFP28 module interfaces |
| Sampling Rate | Up to 256 GSa/s equivalent time sampling for eye diagram measurements |
| Jitter Analysis | Total Jitter (TJ), Random Jitter (RJ), Deterministic Jitter (DJ) decomposition and analysis |
| Electrical Interface | Supports electrical signal input via SMA connectors for direct electrical measurements |
| Pattern Generator | Built-in BERT (Bit Error Rate Tester) with PRBS patterns including PRBS7, PRBS9, PRBS11, PRBS15, PRBS23, PRBS31 |
| Display | 10.4-inch color touchscreen LCD display for waveform and measurement result visualization |
| Connectivity | USB, LAN (Ethernet) interfaces for remote control and data transfer; GPIB optional |
| Power Requirements | AC 100–240 V, 50/60 Hz; approximately 200 W maximum power consumption |
Anritsu MP2110A Options:
- MP2110A - 011 - 1ch BERT
- MP2110A - 012 - 2ch BERT
- MP2110A - 014 - 4ch BERT
- MP2110A - 021 - Dual Electrical Scope
- MP2110A - 024 - Precision Trigger
- MP2110A - 030 - Quad Optical Scope for Singlemode Baseband Flat
- MP2110A - 032 - Dual Optical Scope Baseband Flat
- MP2110A - 033 - Optical and Single-ended Electrical Scope Baseband Flat
- MP2110A - 035 - Optical Scope for Singlemode Baseband Flat
- MP2110A - 036 - Optical Scope for Multimode Baseband Flat
- MP2110A - 039 - Quad Optical Scope for Multimode Baseband Flat
- MP2110A - 040 - Quad Optical Scope for Singlemode
- MP2110A - 042 - Dual Optical Scope
- MP2110A - 043 - Optical and Single-ended Electrical Scope
- MP2110A - 045 - Optical Scope for Singlemode
- MP2110A - 046 - Optical Scope for Multimode
- MP2110A - 049 - Quad Optical Scope for Multimode
- MP2110A - 054 - Clock Recovery (Electrical/Optical) - 26G Clock Recovery (25.5G to 28.2G, SMF/MMF/Electrical)
- MP2110A - 055 - 26G/53Gbaud Clock Recovery (SM Optical) - 26G/53G Clock Recovery (25.5G to 28.9G/51G to 58G, SMF)
- MP2110A - 060 - Optical Scope Custom Gain Adjustment
- MP2110A - 093 - PPG/ED Bit Rate Extension (Adds 10G band)
- MP2110A - 095 - PAM4 Analysis Software
- MP2110A - 096 - Jitter Analysis Software
- MP2110A - 110 - Windows10 Upgrade Retrofit
- MP2110A - 111 - 1ch BERT Retrofit
- MP2110A - 112 - 2ch BERT Retrofit
- MP2110A - 114 - 4ch BERT Retrofit
- MP2110A - 121 - Dual Electrical Scope Retrofit
- MP2110A - 124 - Precision Trigger Retrofit
- MP2110A - 130 - Quad Optical Scope for Singlemode Baseband Flat Retrofit
- MP2110A - 132 - Dual Optical Scope Baseband Flat Retrofit
- MP2110A - 133 - Optical and Single-ended Electrical Scope Baseband Flat Retrofit
- MP2110A - 135 - Optical Scope for Singlemode Baseband Flat Retrofit
- MP2110A - 136 - Optical Scope for Multimode Baseband Flat Retrofit
- MP2110A - 139 - Quad Optical Scope for Multimode Baseband Flat Retrofit
- MP2110A - 140 - Quad Optical Scope for Singlemode Retrofit
- MP2110A - 142 - Dual Optical Scope Retrofit
- MP2110A - 143 - Optical and Single-ended Electrical Scope Retrofit
- MP2110A - 145 - Optical Scope for Singlemode Retrofit
- MP2110A - 146 - Optical Scope for Multimode Retrofit
- MP2110A - 149 - Quad Optical Scope for Multimode Retrofit
- MP2110A - 154 - Clock Recovery (Electrical/Optical) Retrofit
- MP2110A - 155 - 26G/53Gbaud Clock Recovery (SM Optical) Retrofit
- MP2110A - 193 - PPG/ED Bit Rate Extension Retrofit
- MP2110A - 195 - PAM4 Analysis Software Retrofit
- MP2110A - 395 - PAM4 Analysis Software Retrofit
- MP2110A - 196 - Jitter Analysis Software Retrofit
- MP2110A - 396 - Jitter Analysis Software Retrofit
- MP2110A - ES310 - 3 Years Extended Warranty Service
- MP2110A - ES510 - 5 Years Extended Warranty Service
| Model | MP2110A |
|---|

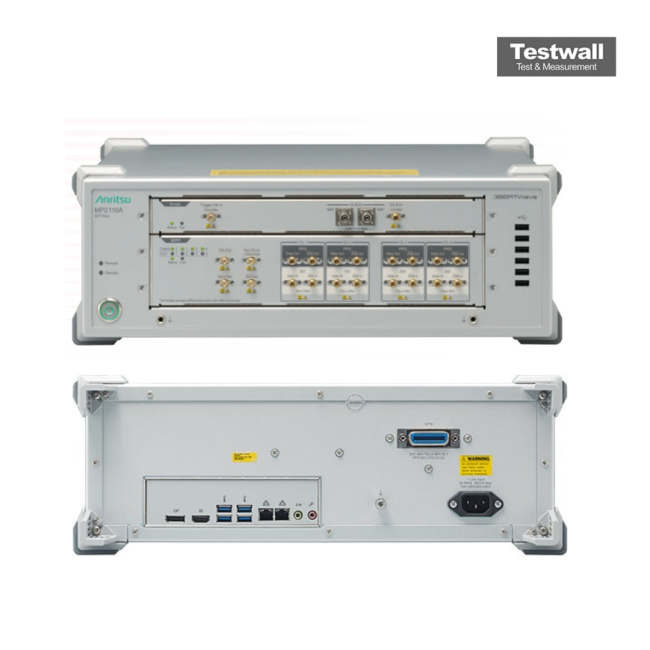

The Anritsu BERTWave MP2110A is an all-in-one measuring instrument integrating a 4ch bit error rate tester (BERT) and 4ch sampling oscilloscope. It supports bit error rate measurements, Eye pattern analyses, Jitter analysis, NRZ and PAM4 signal evaluation, and TDECQ measurement up to 53 Gbaud. With fast 250 ksamples/s acquisition, 40 GHz electrical bandwidth, 35 GHz SMF optical bandwidth, and 25 GHz MMF bandwidth, it ensures precise performance for testing optical modules including SFP28, QSFP28, QSFP-DD, OSFP, and more.
Ideal for R&D and manufacturing, the MP2110A simplifies optical module evaluation by combining multiple functions in one system. It improves efficiency, reduces testing time by up to 65%, and lowers capital and production costs while ensuring stable operation with its built-in PC.
Testwall can supply the used Anritsu BERTWave MP2110A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu BERTWave MP2110A.
