Anritsu MP716A
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 40 GHz |
| Instrument Type | Broadband Power Sensor |
| Connector Type | 2.92 mm (K) Connector |
| Power Range | -30 dBm to +20 dBm |
| Impedance | 50 Ohms |
| VSWR | 1.20 (typical) up to 18 GHz, 1.35 (typical) up to 40 GHz |
| Measurement Speed | High-speed power measurement capability |
| Compatible Instruments | Anritsu ML2430A Series Power Meters |
| Calibration Factor | Stored calibration data included |
| Operating Temperature | 0°C to +55°C |
| Model | MP716A |
|---|

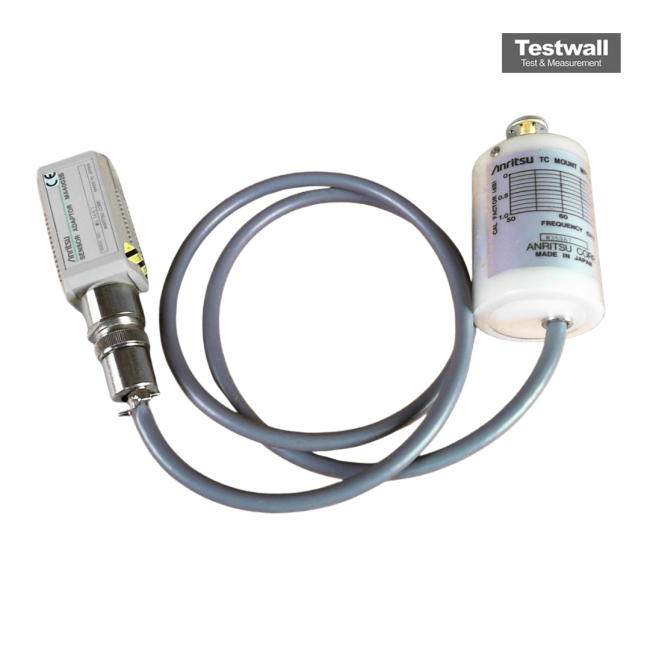

The Anritsu MP716A is a WP-15 Power Sensor with a frequency range of 50 to 75 GHz, offering a maximum VSWR of 1.4. It supports a measuring power range from -20 to +20 dBm (10 μW to 100 μW) and ensures safe operation up to +23 dBm (200 mW). With calibration frequencies at 50, 60, and 75 GHz, its compact design measures 50 Φ x 75 L mm and weighs ≤700 g, including a 1 mm cord.
This precision power sensor is ideal for high-frequency measurements in demanding applications. Its accuracy and wide measuring range make it suitable for laboratory, research, and testing environments.
Testwall can supply the used Anritsu MP716A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MP716A.
