Rohde & Schwarz NRPC50
| Attribute | Value |
|---|---|
| Frequency Range | DC to 50 GHz |
| Connector | 2.4 mm female (test port) |
| Power Range | 10 µW to 100 mW (-20 to +20 dBm) |
| Maximum Power | 0.5 W (+27 dBm) CW, 40 W peak (1 µs) |
| Function | power sensor calibration kit, thermocouple sensor with power splitter (power standard) |
| Interfaces | USB, or via NRX (GPIB, LAN, USB) |
| Dimensions | 67 × 47 × 166 mm (power standard); case 467 × 242 × 84 mm |
| Weight | 1.9 kg (power standard); 4.2 kg (case with kit) |

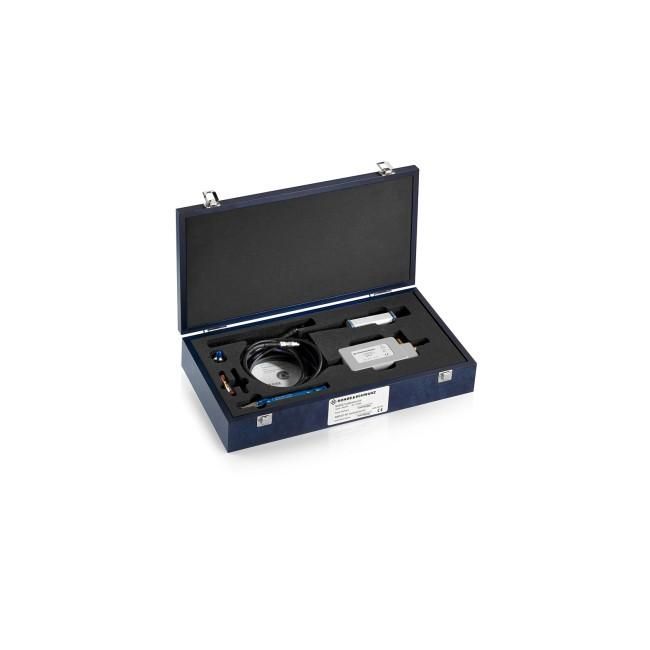

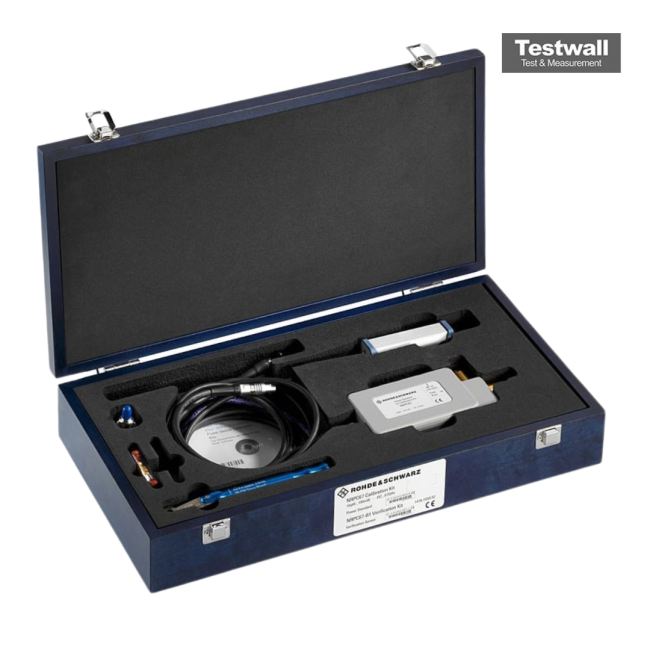

Rohde & Schwarz NRPC50 Calibration Kit, 2.4 mm, DC to 50 GHz; 10 uW to 100 mW Options:
- NRPC50 - B1 - Verification Kit for R&S NRPC50
The Rohde and Schwarz NRPC50 Calibration Kit features a 2.4 mm connector and operates across a DC to 50 GHz frequency range. Designed for precise calibration of NRP Power Sensors, it handles signal levels from -20 dBm to +20 dBm. The kit includes DAkkS (formerly DKD) calibration compliant with ISO 17025 and ISO 9000, ensuring traceability and top-tier measurement integrity.
This kit is ideal for program-controlled calibration of R&S NRP and FSH series sensors. Its modular concept allows high throughput and cost-efficient, flexible use.
Testwall can supply the used Rohde and Schwarz NRPC50 Calibration Kit, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz NRPC50 Calibration Kit.
