Anritsu MS2028B
| Attribute | Value |
|---|---|
| Frequency Range | 400 kHz to 20 GHz |
| Dynamic Range | >100 dB |
| Output Power Range | -50 dBm to 0 dBm |
| Measurement Ports | 2-Port Vector Network Analyzer (VNA) |
| Display | 6.5-inch color LCD touchscreen |
| Battery Life | Up to 2 hours with standard battery pack |
| Weight | 3.6 kg (7.9 lbs) with battery |
| Connector Type | Type-N (f), 50 Ohm |
| Data Points | 2 to 1601 points per sweep |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
Anritsu MS2028B Options:
- MS2028B - 0002 - Time Domain (includes DTF capability)
- MS2028B - 0005 - Power Monitor (requires external detector)
- MS2028B - 0007 - Secure Data Operation
- MS2028B - 0010 - Built-in Bias-Tee
- MS2028B - 0011 - K(f) Test Port Connectors
- MS2028B - 0015 - Vector Voltmeter
- MS2028B - 0019 - High Accuracy Power Meter (requires external USB sensor)
- MS2028B - 0031 - GPS Receiver (requires GPS antenna, 2000-1528-R)
- MS2028B - 0077 - Balanced/Differential S-Parameters, 1-port
- MS2028B - 0098 - Z-540 Calibration
- MS2028B - 0099 - Premium Calibration
| Model | MS2028B |
|---|

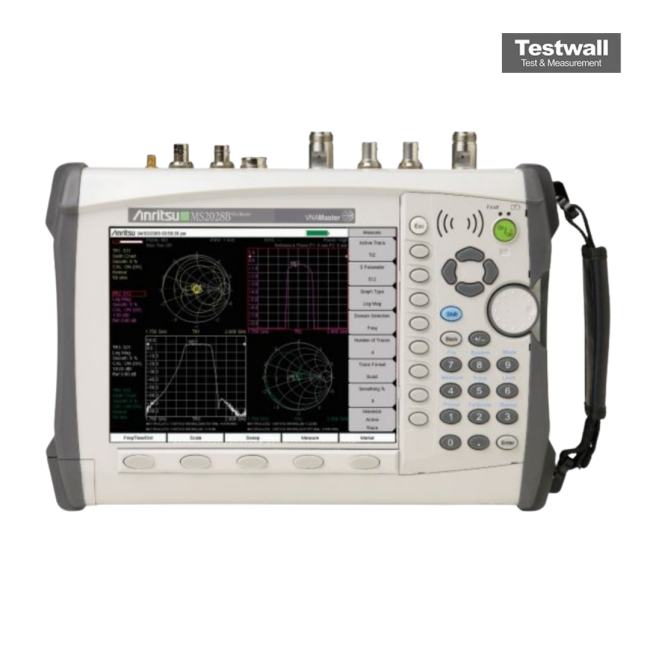

The Anritsu MS2028B VNA Master is a high-performance handheld vector network analyzer designed for precise cable and antenna measurements. Covering an outstanding frequency range from 5 kHz to 20 GHz, it supports diverse RF communications systems, radars, and microwave applications. Equipped with a 12-term error correction algorithm, a 3-receiver architecture, and a rapid 750 µsec per point sweep speed, it delivers accurate 2-port magnitude, phase, and Distance-to-Fault measurements with unmatched efficiency in the field.
With more than 2 hours of battery life, 2 GB memory, daylight-viewable TFT display, and support for over 4000 stored traces, the MS2028B is optimized for demanding field operations. Connectivity is simplified with USB/Ethernet options, GPS receiver support, and language customization features.
Testwall can supply the used Anritsu MS2028B VNA Master, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2028B VNA Master.
