Keysight (Agilent) E2675B
| Attribute | Value |
|---|---|
| Product Family | InfiniiMax Probe Amplifier |
| Compatible Oscilloscopes | Infiniium Series Oscilloscopes |
| Probe Type | Differential Probe Head |
| Bandwidth | Up to 12 GHz (dependent on probe amplifier used) |
| Input Impedance | 50 kΩ differential |
| Input Capacitance | Approximately 0.15 pF |
| Dynamic Range | ±8V differential |
| Common Mode Range | ±12V |
| Connector Type | Compatible with InfiniiMax probe amplifier interface |
| Application | High-speed differential signal measurements, board-level debugging and validation |
Keysight (Agilent) E2675B Options:
- E2675B - E2675B - 6 GHz Differential browser head
- E2675B - E2669B - InfiniiMax I connectivity kit for diff/single-ended measurements (E2675B/77B/78B)
- E2675B - E2655C - Probe deskew and performance verification kit (13 GHz)
- E2675B - E2677B - 12 GHz Differential solder-in head
- E2675B - E2678B - 12 GHz Differential/single-ended socketed probe head
- E2675B - MX0100A-001 - 25 GHz Micro probe head (set of 5), supports InfiniiMode
- E2675B - MX0100A-002 - 25 GHz Micro probe head (set of 25), supports InfiniiMode
- E2675B - MX0100A-003 - 25 GHz Micro probe head (set of 50), supports InfiniiMode
- E2675B - MX0102A - Soldering Tool Kit
- E2675B - MX0103A - 25 GHz Bullet adapter
- E2675B - MX0105A - 21 GHz SMA probe head, supports InfiniiMode
- E2675B - MX0106A - 23 GHz Solder-in probe head, supports InfiniiMode
- E2675B - N2787A - 3D probe positioner
- E2675B - N2823A - 2.92 mm phase-matched cable pair (1 m)
- E2675B - N2837A - 21 GHz Browser head replace tip kit (set of 40)
- E2675B - N2839A - 21 GHz Browser head
- E2675B - N2849A - 13 GHz QuickTip probe head tips
- E2675B - N2851A - 13 GHz QuickTip probe head
- E2675B - N2852A - AutoProbe II to AutoProbe III interface adapter (for use with UXR 1- and 1.85-mm models)
- E2675B - N2880A - Coaxial attenuator Kit (pairs of 6, 12, and 20 dB attenuators)
- E2675B - N2881A - DC blocking caps (set of 2 30-VDC block caps)
- E2675B - N2884A - 12 GHz ZIF fine wire tips for wafer probing
- E2675B - N2887B - 4 GHz Soft touch pro probe interface adapter
- E2675B - N2888A - 4 GHz Soft touch half-channel probe interface adapter
- E2675B - N5380B - 12 GHz SMA probe head
- E2675B - N5381B - 12 GHz Solder-in probe head
- E2675B - N5425B - 18 GHz ZIF probe head
- E2675B - N5426A - 18 GHz ZIF tip (set of 10)
- E2675B - N5442A - AutoProbe I to AutoProbe II interface adapter (3.5 mm to precision BNC adapter)
- E2675B - N5448B - 2.92 mm phase-matched cable pair (25 cm)
- E2675B - N5450B - Extreme temperature extension cable, 1 m long
- E2675B - N5451A - Long-wired ZIF tip kit (7 and 11 mm), 5 & 9.9 GHz
| Model | E2675B |
|---|

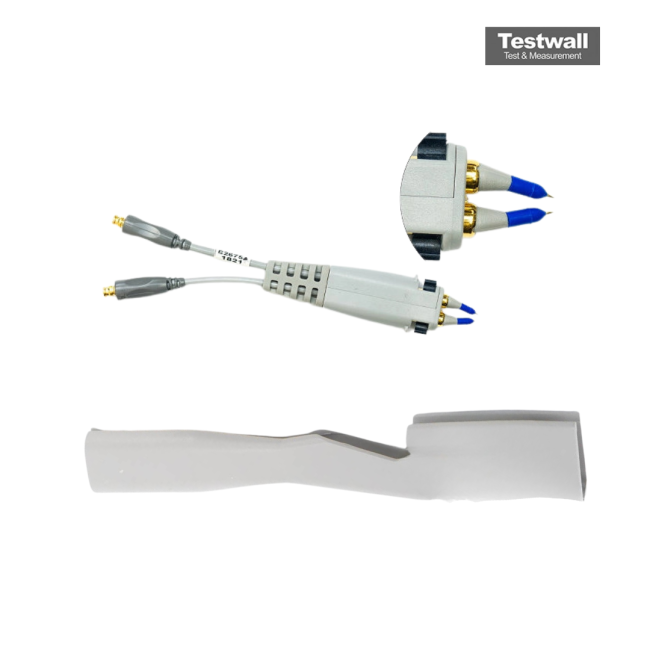

Keysight (Agilent) E2675B InfiniiMax 6 GHz Differential Browse
The Keysight (Agilent) E2675B InfiniiMax 6 GHz Differential Browse is a high-performance differential browser probe head designed for general-purpose troubleshooting of both differential and single-ended signals with z-axis compliance and variable spacing from 0.25 €“ 5.80 mm (10 €“ 230 mils). It is a versatile tool that provides exceptional performance and ease of use.
Keysight (Agilent) E2675B InfiniiMax 6 GHz Differential Browse offers a bandwidth of 6GHz for accurate signal capture. It includes 20 replaceable tips for various measurements and ergonomic handle for easy use. with the InfiniiMax 1130A/31A/32A/34A/68A/69A probe amps and is compatible with Infiniium and InfiniiVision oscilloscopes.
Specifications for the Keysight (Agilent) E2675B InfiniiMax 6 GHz Differential Browse Include:
| Bandwidth | 6GHz |
| Variable spacing | 0.25 €“ 5.80 mm (10 €“ 230 mils) |
