Anritsu MS2028C
| Attribute | Value |
|---|---|
| Frequency Range | 400 MHz to 20 GHz |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -50 dBm to 0 dBm |
| Measurement Modes | 1-Port and 2-Port Vector Network Analysis, Distance-to-Fault (DTF), Cable Loss, Return Loss, VSWR |
| Connector Type | N-Type (f), 50 Ohm |
| Display | 7-inch (640 x 480) Sunlight-Readable Color LCD |
| Battery Life | Approximately 3 hours with standard Li-Ion battery pack |
| Data Points | Up to 1601 data points per sweep |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Weight | Approximately 3.0 kg (6.6 lbs) with battery |
Anritsu MS2028C Options:
- MS2028C - 0002 - Time Domain (includes Distance Domain capabilities)
- MS2028C - 0007 - Secure Data Operation
- MS2028C - 0010 - Built-in Bias-Tee
- MS2028C - 0011 - K(f) Test Port Connectors
- MS2028C - 0015 - Vector Voltmeter
- MS2028C - 0019 - High Accuracy Power Meter (requires external USB sensor)
- MS2028C - 0031 - GPS Receiver (requires GPS antenna, 2000-1528-R, 2000-1652-R, or 2000-1760-R)
- MS2028C - 0077 - Balanced/Differential S-Parameters, 1-Port
- MS2028C - 0098 - Standard Calibration (ISO 17025 and Z540.1)
- MS2028C - 0099 - Premium Calibration (ISO 17025 and Z540.1 plus test data)
| Model | MS2028C |
|---|

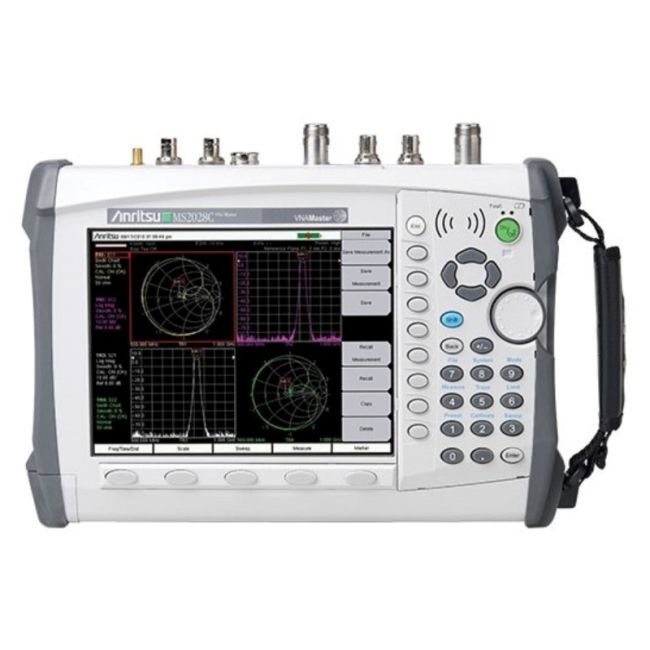

The Anritsu MS2028C VNA Master + Spectrum Analyzer covers 5 kHz to 20 GHz, offering unmatched field performance for cable, antenna, component, and signal analysis. It integrates a 12-term error correction algorithm in a handheld, battery-powered rugged device, ensuring reliable broadband measurements. Optional Time Domain functions provide Low Pass Step response, Real Impedance graphs, and gating capabilities for precise TDR-type analysis.
Ideal for spectrum monitoring, interference analysis, regulatory compliance, broadcast proofing, and 3G/4G network validation, this instrument ensures accurate RF and microwave measurements in demanding environments.
Testwall can supply the used Anritsu MS2028C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2028C.
