Anritsu

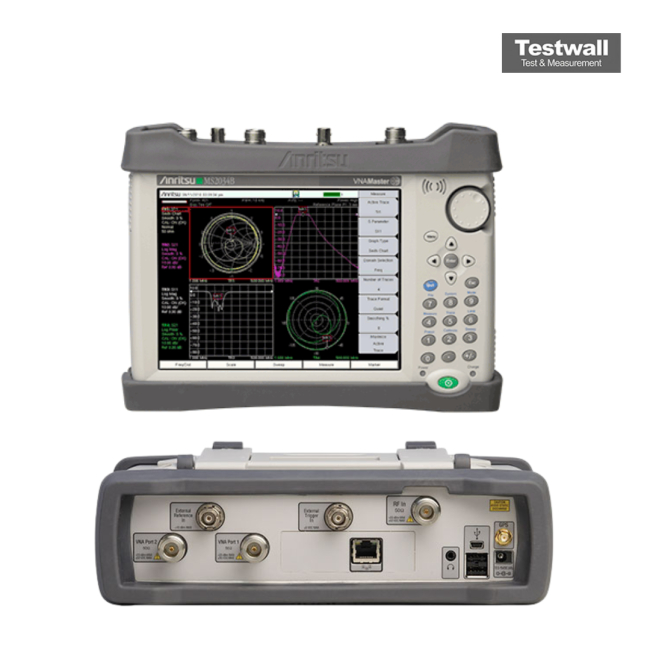

Anritsu MS2034B
4GHz Handheld VNA Master & Spectrum Analyser
9 kHz to 4 GHz Frequency Range
>95 dB Dynamic Range
-163 dBm (typical, with preamplifier) Displayed Average Noise Level (DANL)
-100 dBc/Hz at 10 kHz offset (typical) Phase Noise
1 Hz to 3 MHz Resolution Bandwidth (RBW)
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 4 GHz |
| Dynamic Range | >95 dB |
| Displayed Average Noise Level (DANL) | -163 dBm (typical, with preamplifier) |
| Phase Noise | -100 dBc/Hz at 10 kHz offset (typical) |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| VNA Frequency Range | 2 MHz to 4 GHz |
| Battery Life | Approximately 2 hours with standard battery pack |
| Display | 8.4-inch color LCD (800 x 600 resolution) |
| Weight | Approximately 3.6 kg (7.9 lbs) with battery |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
Anritsu MS2034B 4GHz Handheld VNA Master & Spectrum Analyser Options:
- MS2034B - 010 - Built-In Bias-Tee, +12 To +32 V Variable
- MS2034B - 015 - Vector Voltmeter
- MS2034B - 019 - High-Accuracy Power Meter (Requires External Usb Sensor, Sold Separately)
- MS2034B - 025 - Interference Analysis
- MS2034B - 027 - Channel Scanner
- MS2034B - 031 - Gps Receiver
- MS2034B - 411 - Ethernet Connectivity
- MS2034B - 431 - Coverage Mapping
- MS2034B - 509 - Am/Fm/Pm Demodulation Analyzer
| Model | MS2034B |
|---|
The Anritsu MS2034B is a 4GHz handheld VNA Master and Spectrum Analyzer that combines a 500kHz to 4GHz two-port VNA with a 9kHz to 4GHz spectrum analyzer. It includes distance-to-fault measurements and a USB data interface in a portable, battery-powered unit.
Ideal for field testing and troubleshooting, the MS2034B offers efficient spectrum analysis and network diagnostics, ensuring high performance in remote and onsite environments.
Testwall can supply the used Anritsu MS2034B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2034B.
