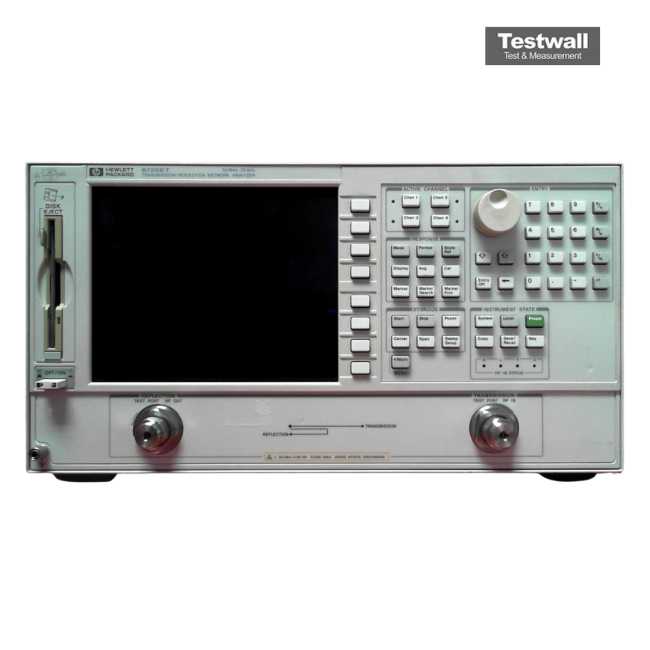

Keysight (Agilent) 8720ET
| Attribute | Value |
|---|---|
| Frequency Range | 50 MHz to 20 GHz |
| Number of Ports | 2-Port Vector Network Analyzer |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -10 dBm to +10 dBm |
| Measurement Parameters | S11, S21 (Transmission and Reflection) |
| IF Bandwidth | 10 Hz to 3 kHz |
| Connector Type | 3.5 mm (SMA Compatible) |
| Display | Built-in CRT Display, 8.5-inch |
| Calibration Standards | Full 1-Port and 2-Port Calibration Supported |
| Interface | GPIB (IEEE-488), RS-232 |
Keysight Technologies 8720ET Options:
- 8720ET - 004 - Step attenuator: adds a 55 dB step attenuator to extend the minimum source power level by 55 dB
- 8720ET - 010 - Time-domain: converts frequency domain data to time domain using Fourier transformation technique (chirp Z)
- 8720ET - 1D5 - High-stability frequency reference: provides ±0.05 ppm temperature stability from 0 to 60°C (referenced to 25°C)
| Model | 8720ET |
|---|
The Keysight (Agilent) 8720ET Vector Network Analyzer operates from 50 MHz to 20 GHz, offering two measurement channels and four display channels. It integrates a synthesized source, test set, and tuned receiver. It includes features like a T/R test set for forward measurements, dynamic range up to 104 dB, fast sweep/data transfer, and internal automation with test-sequencing.
Used for RF and microwave component analysis, the 8720ET supports frequency and power sweeps, pass/fail testing, and optional time-domain analysis. Vector accuracy enhancements include one-port, response, and enhanced calibrations.
Testwall can supply the used Keysight (Agilent) 8720ET, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8720ET.
