Anritsu MS2035B
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 4 GHz |
| Dynamic Range | Up to 110 dB |
| Frequency Resolution | 1 Hz |
| VSWR/Return Loss Measurement | Built-in Vector Network Analyzer (VNA) with 2-port measurement capability |
| Display | 7-inch color TFT LCD touchscreen, 800 x 480 resolution |
| Battery Life | Approximately 3 hours with internal lithium-ion battery pack |
| Weight | Approximately 3.0 kg (6.6 lbs) with battery |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Connector Type | Type-N female RF connectors |
| Interference Analyzer | Built-in interference analyzer with spectrogram, RSSI, and signal strength mapping capabilities |
Anritsu MS2035B Options:
- MS2035B - Option 10 - Built-in Variable Voltage Bias Tee
- MS2035B - Option 15 - Vector Voltmeter
- MS2035B - Option 19 - High Accuracy Power Meter (Requires USB Sensors, sold separately)
- MS2035B - Option 25 - Interference Analysis (requires external antenna, option 31 recommended)
- MS2035B - Option 27 - Channel Scanner (requires external antenna)
- MS2035B - Option 31 - GPS Receiver (requires GPS antenna, sold separately)
- MS2035B - Option 411 - Ethernet Connectivity
- MS2035B - Option 431 - Coverage Mapping (requires option 31)
- MS2035B - Option 509 - AM/FM/PM Demodulation Analyzer
- MS2035B - Option 98 - Z-540 Calibration
- MS2035B - Option 99 - Premium Calibration
| Model | MS2035B |
|---|

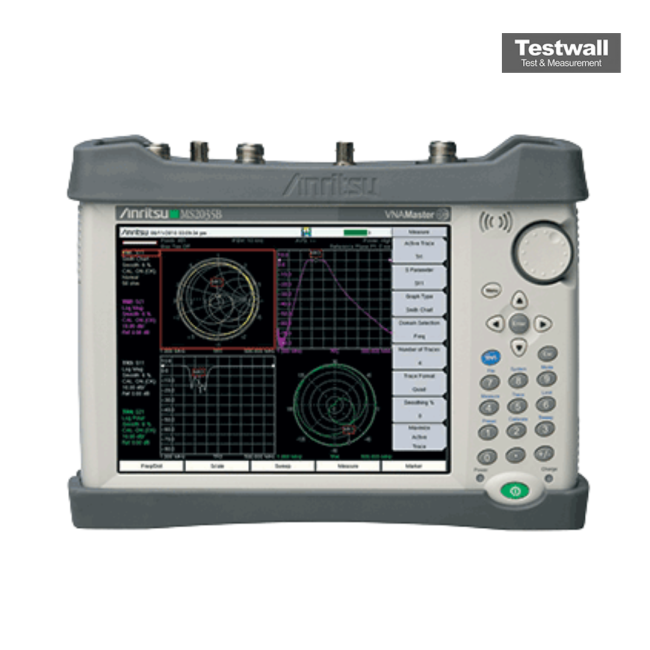

The Anritsu VNA Master MS2035B is a compact handheld multi-function instrument featuring a 2-port Vector Network Analyzer and a high-performance spectrum analyzer. It delivers precise S-parameter analysis with an exceptionally low noise floor, enabling accurate validation of feedline, filtering, and antenna components in any field condition.
Designed for field use, the MS2035B identifies rogue signals, measures carriers and distortion, and ensures optimal base-station performance by validating carrier frequencies and distinguishing desired from undesired signals.
Testwall can supply the used Anritsu VNA Master MS2035B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu VNA Master MS2035B.
