Anritsu
Anritsu MS2036C
VNA Master, Network Analyzer, 5 kHz - 6 GHz, Specturm Analyzer, 9 kHz - 9 GHz
9 kHz to 9 GHz Frequency Range
>108 dB in 1 Hz RBW Dynamic Range
-100 dBc/Hz at 10 kHz offset (typical) Phase Noise
-163 dBm/Hz (typical, preamp on) DANL (Displayed Average Noise Level)
2-port VNA with full S-parameter measurement (S11, S21, S12, S22) Vector Network Analyzer Ports
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 9 GHz |
| Dynamic Range | >108 dB in 1 Hz RBW |
| Phase Noise | -100 dBc/Hz at 10 kHz offset (typical) |
| DANL (Displayed Average Noise Level) | -163 dBm/Hz (typical, preamp on) |
| Vector Network Analyzer Ports | 2-port VNA with full S-parameter measurement (S11, S21, S12, S22) |
| Display | 10.4-inch daylight-viewable color LCD touchscreen |
| Battery Life | Approximately 2 hours with standard battery pack |
| Weight | Approximately 8.4 lbs (3.8 kg) |
| Operating Temperature | -10°C to +55°C |
| Connector Type | Type-N (50 Ω) RF connectors |
Anritsu MS2036C Options:
- MS2036C - 0002 - Time Domain with Low Pass TDR step response
- MS2036C - 0007 - Secure Data Operation
- MS2036C - 0010 - Built-in Variable Voltage Bias Tee
- MS2036C - 0015 - Vector Voltmeter
- MS2036C - 0019 - High Accuracy Power Meter (requires USB sensors, sold separately)
- MS2036C - 0025 - Interference Analysis (requires external antenna, MS203xC models only)
- MS2036C - 0027 - Channel Scanner (requires external antenna, MS203xC models only)
- MS2036C - 0031 - GPS Receiver (requires GPS antenna, sold separately)
- MS2036C - 0077 - Balanced / Differential S-Parameters, 1-port
- MS2036C - 0431 - Coverage Mapping (requires Option 31, GPS)
- MS2036C - 0098 - Standard Calibration (ISO 17025 and Z540.1)
- MS2036C - 0099 - Premium Calibration (ISO 17025 and Z540.1 plus test data)
| Model | MS2036C |
|---|

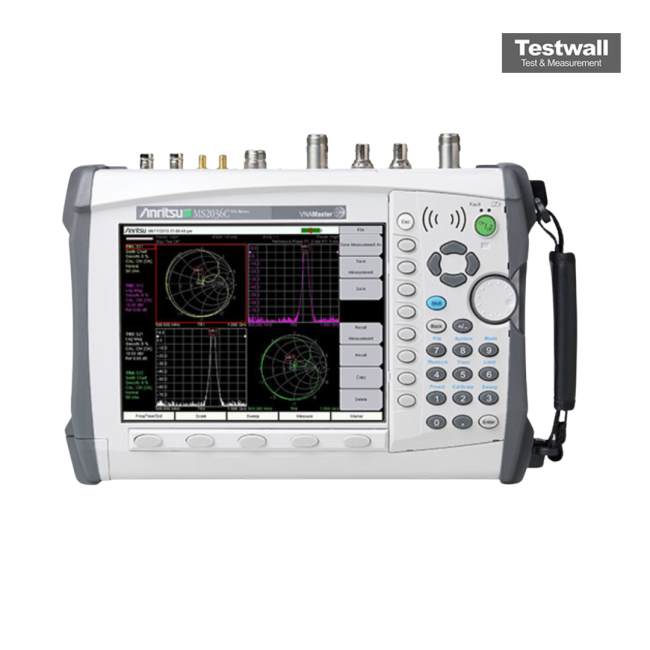

The Anritsu VNA Master MS2036C is a handheld Vector Network Analyzer (5 kHz to 6 GHz) combined with a Spectrum Analyzer (9 kHz to 9 GHz), delivering precise 2-port, 2-path measurements with 12-term error correction and fast 350 µsec/point speed.
Engineered for field use, it supports antenna/cable analysis, interference detection, coverage mapping, and spectrum monitoring with powerful features like Burst Detect™ and PIM Hunting mode.
Testwall can supply the used Anritsu VNA Master MS2036C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu VNA Master MS2036C.
