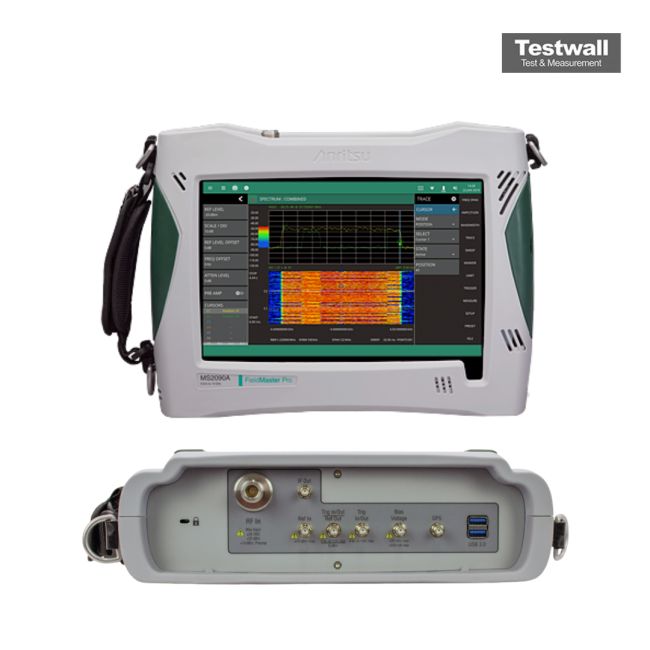

Anritsu MS2090A
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 9 GHz |
| Displayed Average Noise Level (DANL) | -163 dBm/Hz (typical, preamp on) |
| Phase Noise | -100 dBc/Hz at 10 kHz offset (typical) |
| Dynamic Range | Up to 104 dB |
| Amplitude Accuracy | ±0.5 dB (typical) |
| Resolution Bandwidth (RBW) | 1 Hz to 10 MHz |
| Battery Life | Up to 4 hours with standard battery pack |
| Display | 7-inch sunlight-readable touchscreen display |
| Operating Temperature | -10°C to +55°C |
| Weight | Approximately 3.0 kg (6.6 lbs) |
| Model | MS2090A |
|---|
The Anritsu MS2090A Spectrum Analyzer offers frequency ranges of 9, 14, 20, 26.5, 32, 44, or 54GHz, delivering precision signal analysis with exceptional dynamic range and phase noise performance. This high-performance device is engineered for advanced RF and microwave measurements across multiple bands.
Ideal for 5G, radar, and satellite applications, the MS2090A provides extensive bandwidth coverage, intuitive interface, and versatile field-deployable design for reliable spectrum monitoring and analysis.
Testwall can supply the used Anritsu MS2090A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2090A.
