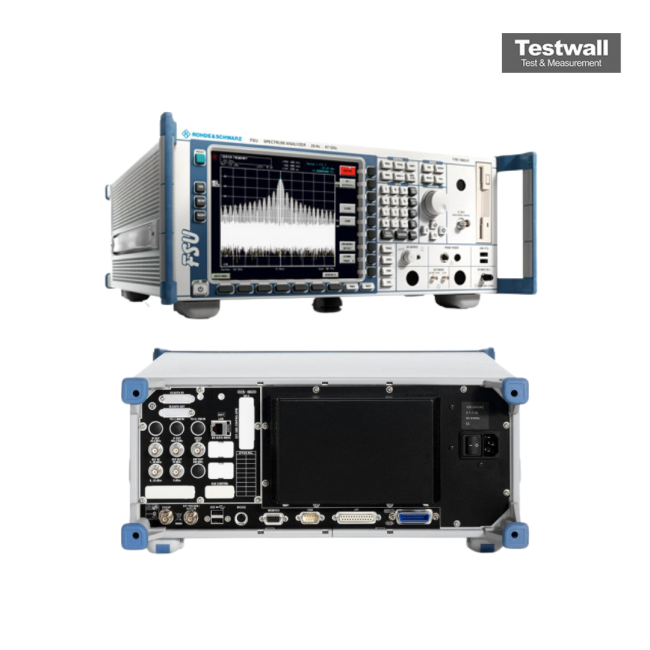

Rohde & Schwarz FSUP26
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 26.5 GHz |
| Phase Noise Measurement Range | Up to -170 dBc/Hz |
| Displayed Average Noise Level (DANL) | -155 dBm (typical, 1 GHz, 0 dB attenuation) |
| Dynamic Range | Up to 78 dB (third-order intercept) |
| Resolution Bandwidth (RBW) | 1 Hz to 10 MHz |
| Phase Noise of Internal Reference | -130 dBc/Hz at 10 kHz offset (at 1 GHz carrier) |
| Input Impedance | 50 Ohm |
| Maximum Input Level | +30 dBm (with mechanical attenuator) |
| Spurious Response Suppression | >70 dB |
| Measurement Modes | Signal Source Analyzer, Spectrum Analyzer, Phase Noise Analyzer |
Rohde & Schwarz FSUP26 Options:
- FSUP26 - FSU-B4 - Low-Aging OCXO
- FSUP26 - FSP-B10 - External Generator Control
- FSUP26 - FSU-B21 - LO/IF Ports for External Mixers
- FSUP26 - FSU-B23 - 20 dB Preamplifier, 3.6 GHz to 26.5 GHz (requires R&S FSU-B25)
- FSUP26 - FSU-B25 - Electronic Attenuator, 0 dB to 30 dB, and 20 dB Preamplifier (3.6 GHz)
- FSUP26 - FSU-B28 - Trigger Port
- FSUP26 - FSU-B60 - Low Phase Noise
- FSUP26 - FS-K7 - AM/FM/ϕM Measurement Demodulator
- FSUP26 - FS-K9 - Power Sensor Measurements
- FSUP26 - FS-K30 - Application Firmware for Noise Figure and Gain Measurements
| Model | FSUP26 |
|---|
The Rohde & Schwarz FSUP26 is a precision signal source analyzer with a frequency range up to 26.5 GHz, integrating spectrum analyzer, phase noise tester, and vector signal analyzer in one. It enables advanced phase noise measurement, VCO characterization, and transient response analysis with high sensitivity and cross-correlation up to 20 dB.
Ideal for testing oscillators, synthesizers, radar, and electronic warfare components, with dual low-noise DC sources and advanced modulation analysis features.
Testwall can supply the used Rohde & Schwarz FSUP26, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSUP26.
