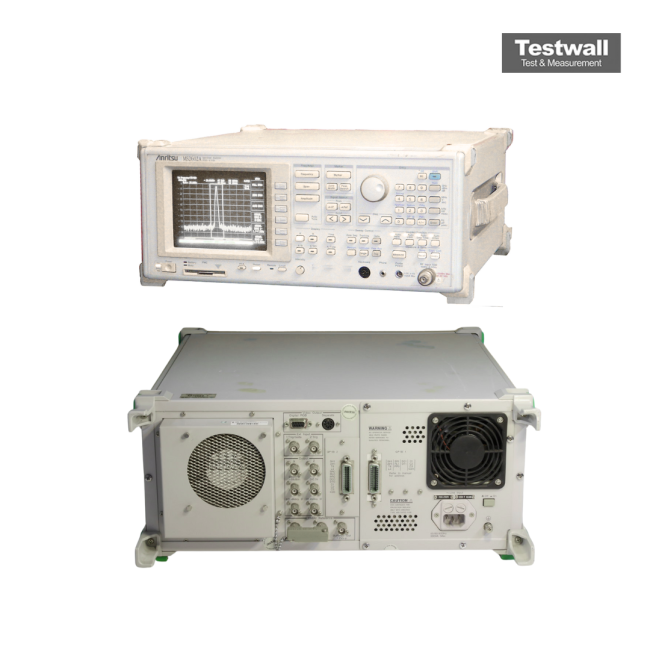

Anritsu MS2602A
| Attribute | Value |
|---|---|
| Frequency Range | 100 Hz to 2.2 GHz |
| Resolution Bandwidth | 30 Hz to 3 MHz (in 1-3-10 steps) |
| Display Range | 0 to 100 dB |
| Frequency Reference Accuracy | ±1 ppm (with internal reference) |
| Input Impedance | 50 Ohms |
| Maximum Input Level | +30 dBm (1 W) |
| Dynamic Range | 70 dB or greater |
| Noise Figure | Typically 30 dB or less (at 1 GHz) |
| Video Bandwidth | 1 Hz to 1 MHz |
| Interface / Connectivity | GPIB (IEEE-488), RS-232C |
Anritsu MS2602A Options:
- MS2602A - 01 - Reference oscillator (stability: <5 x 10⁻⁹/day)
- MS2602A - 02 - RS-232C interface (for GPIB 1 and RS-232C combination)
- MS2602A - 03 - I/O port (for GPIB 1 and I/O combination)
- MS2602A - 04 - PTA (with external JIS type PTA keyboard)
- MS2602A - 05 - PTA (without external PTA keyboard)
| Model | MS2602A |
|---|
The Anritsu MS2602A is a precision spectrum analyzer operating from 100 Hz to 8.5 GHz, designed to meet quasi-microwave frequency demands. It features a minimum 10 Hz resolution bandwidth, average noise floor below −135 dBm, high C/N, low distortion, plus time-domain capability.
Its large 7″ color CRT, flash memory interface, dual-display mode, multiple markers, FM demodulated waveform display and keyboard interface deliver operational flexibility.
Testwall supplies the used Anritsu MS2602A with expert support and global delivery, offering unmatched reliability and service quality for high-performance instrumentation.
Testwall can supply the used Anritsu MS2602A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2602A.
