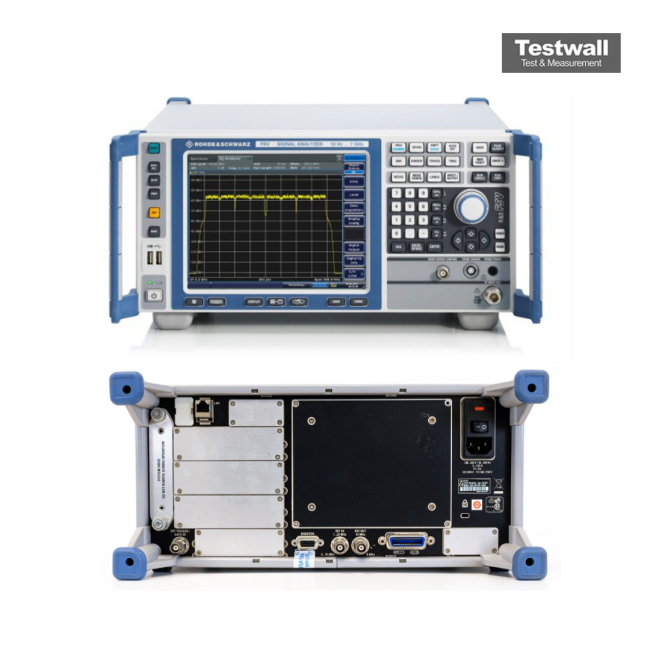

Rohde & Schwarz FSV13
9KHz - 13.6GHz Spectrum Analyser
10 Hz to 13.6 GHz Frequency Range
-155 dBm (typ.) at 1 GHz with preamplifier Display Average Noise Level (DANL)
-98 dBc/Hz at 10 kHz offset from 1 GHz carrier (typ.) Phase Noise
1 Hz to 10 MHz (in 1/2/3/5/10 steps), 200 kHz, 1 MHz, 10 MHz EMI bandwidths Resolution Bandwidth (RBW)
+20 dBm (typ.) at 1 GHz Third-Order Intercept Point (TOI)
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz to 13.6 GHz |
| Display Average Noise Level (DANL) | -155 dBm (typ.) at 1 GHz with preamplifier |
| Phase Noise | -98 dBc/Hz at 10 kHz offset from 1 GHz carrier (typ.) |
| Resolution Bandwidth (RBW) | 1 Hz to 10 MHz (in 1/2/3/5/10 steps), 200 kHz, 1 MHz, 10 MHz EMI bandwidths |
| Third-Order Intercept Point (TOI) | +20 dBm (typ.) at 1 GHz |
| Input Attenuation Range | 0 dB to 75 dB in 5 dB steps |
| Maximum Input Level | +30 dBm (1 W) continuous power at RF input |
| Sweep Time | 1 ms to 16000 s (span > 0 Hz) |
| Detector Types | Auto peak, max peak, min peak, sample, RMS, average, quasi-peak |
| Interface Connectivity | USB, LAN (1000BASE-T), GPIB (optional), CF card slot, DVI display output |
Rohde & Schwarz FSV13 Options:
- FSV13 - B1 - Ruggedized Housing
- FSV13 - B3 - Audio Demodulator
- FSV13 - B4 - OCXO Reference Frequency (model .02)
- FSV13 - B4 - OCXO Extended Frequency Stability (model .03)
- FSV13 - B5 - Additional Interfaces (IF out, video out, AUX port, trigger out, 2x USB)
- FSV13 - B9 - Tracking Generator (100 kHz to 7 GHz)
- FSV13 - B10 - External Generator Control
- FSV13 - B14 - Ultra-High Precision Frequency Reference
- FSV13 - B17 - Digital Baseband Interface
- FSV13 - B18 - Solid-State Drive (removable hard drive)
- FSV13 - B19 - Spare Hard Drive (removable hard drive)
- FSV13 - B22 - RF Preamplifier (9 kHz to 7 GHz)
- FSV13 - B24 - RF Preamplifier (9 kHz to 13.6 GHz)
- FSV13 - B25 - Electronic Attenuator, 1 dB steps
- FSV13 - B30 - DC Power Supply for 12 V Supply Voltage
- FSV13 - B32 - Lithium-Ion Battery Pack
- FSV13 - B34 - Lithium-Ion Battery Charger
- FSV13 - B70 - 40 MHz Analysis Bandwidth
- FSV13 - B160 - 160 MHz Analysis Bandwidth (for frequencies ≤ 7 GHz)
- FSV13 - K7 - Analog Modulation Analysis for AM, FM, φM
- FSV13 - K7S - FM Stereo Measurements (requires FSV-K7)
- FSV13 - K8 - Bluetooth/EDR Measurements
- FSV13 - K9 - Power Sensor Measurement with R&S NRP Power Sensors
- FSV13 - K10 - Analysis of GSM, EDGE and EDGE Evolution Signals
- FSV13 - K14 - Spectrogram Measurements
- FSV13 - K30 - Noise Figure and Gain Measurements
- FSV13 - K40 - Phase Noise Measurement Application
- FSV13 - K54 - EMI Measurement Application
- FSV13 - K70 - Vector Signal Analysis
- FSV13 - K72 - Analysis of 3GPP FDD Base Station Signals incl. HSPA+
- FSV13 - K73 - 3GPP FDD UE Analysis incl. HSPA+
- FSV13 - K76 - 3GPP TD-SCDMA BTS Measurements
- FSV13 - K77 - TD-SCDMA UE Measurements
- FSV13 - K82 - Analysis of CDMA2000 Base Station Signals
- FSV13 - K83 - CDMA2000 MS Measurements
- FSV13 - K84 - Analysis of 1xEV-DO Base Station Signals
- FSV13 - K85 - 1xEV-DO MS Measurements
- FSV13 - K91 - Analysis of WLAN 802.11a, b, g, j Signals
- FSV13 - K91AC - WLAN 802.11ac Measurement Application (requires FSV-B160)
- FSV13 - K91n - Extension of FSV-K91 to 802.11n (requires FSV-B70)
- FSV13 - K93 - Analysis of WiMAX 802.16 SISO Signals
- FSV13 - K100 - Analysis of EUTRA/LTE FDD Downlink Signals
- FSV13 - K101 - Analysis of EUTRA/LTE FDD Uplink Signals
- FSV13 - K102 - EUTRA/LTE Downlink MIMO Measurements (requires FSV-K100 or FSV-K104)
- FSV13 - K104 - Analysis of EUTRA/LTE TDD Downlink Signals
- FSV13 - K105 - Analysis of EUTRA/LTE TDD Uplink Signals
| Model | FSV13 |
|---|
The Rohde & Schwarz FSV13 Signal Analyser offers a frequency range of 10 Hz to 13.6 GHz, signal analysis bandwidth up to 160 MHz, and low DANL down to -155 dBm. It features a 0.4 dB level measurement uncertainty up to 7 GHz and supports various wireless standards.
This analyzer is ideal for RF development, production, and service with touch screen operation, high-speed measurements, and compact form factor.
Testwall can supply the used Rohde & Schwarz FSV13, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSV13.
