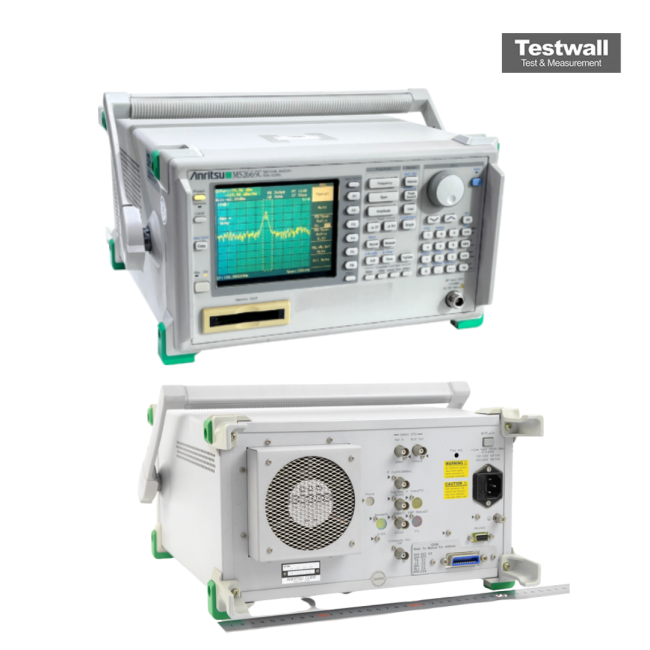

Anritsu MS2663B
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 21 GHz |
| Resolution Bandwidth | 1 Hz to 3 MHz (in 1-3-10 steps) |
| Display Average Noise Level | -145 dBm (typical) at 1 GHz, 10 Hz RBW |
| Phase Noise | -98 dBc/Hz at 1 GHz, 10 kHz offset (typical) |
| Input VSWR | Less than 2.0 (typical) at 50 Ohm input |
| Maximum Input Power | +30 dBm (1 W) continuous |
| Frequency Accuracy | ±(frequency × reference accuracy + 1% of span + 10% of RBW + 5 Hz) |
| Dynamic Range | 70 dB or greater (typical) |
| Amplitude Measurement Range | -145 dBm to +30 dBm |
| Power Supply | AC 90 to 250 V, 47 to 63 Hz |
| Model | MS2663B |
|---|
The Anritsu MS2663B Spectrum Analyser offers a wide frequency range from 9 kHz to 8 GHz, enabling precise signal analysis across various applications. It features high-speed sweep capabilities and a dynamic range suited for both lab and field measurements. With its detailed measurement accuracy and stable performance, the MS2663B is ideal for RF and microwave signal evaluation.
Used extensively for signal monitoring, EMC testing, and device diagnostics, this spectrum analyser supports a wide array of modulation formats and measurement modes.
Testwall can supply the used Anritsu MS2663B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2663B.
