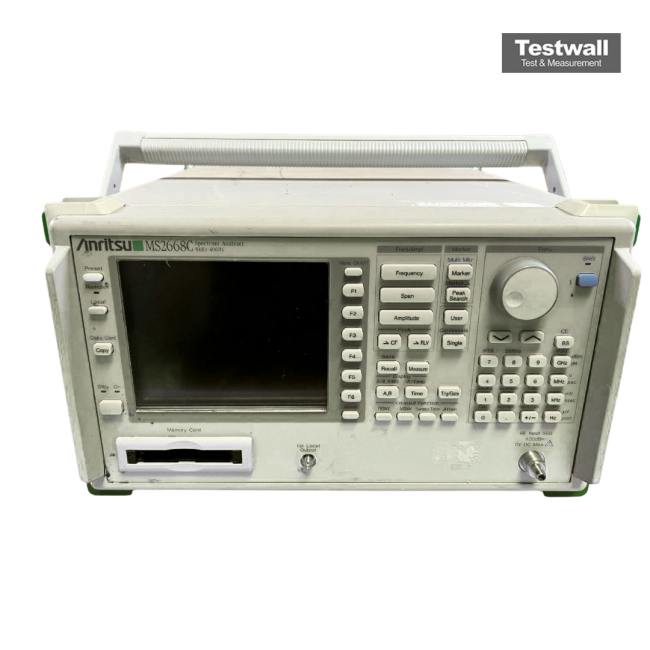

Anritsu MS2668C
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 9 GHz |
| Resolution Bandwidth | 1 Hz to 3 MHz |
| Display Average Noise Level | -147 dBm (typical) at 1 GHz, 10 Hz RBW |
| Phase Noise | -98 dBc/Hz at 1 GHz, 10 kHz offset (typical) |
| Amplitude Measurement Range | -147 dBm to +30 dBm |
| Frequency Reference Accuracy | ±1 ppm aging per year (internal reference) |
| Input Impedance | 50 Ohms |
| Maximum Input Level | +30 dBm (1 W) |
| Video Bandwidth | 1 Hz to 3 MHz |
| Power Requirements | 100 to 240 VAC, 50/60 Hz |
Anritsu MS2668C Options:
- MS2668C - 02 - Narrow resolution bandwidth (30, 100, 300 Hz)
- MS2668C - 03 - Narrow resolution bandwidth (10, 30, 100, 300 Hz)
- MS2668C - 04 - High-speed time domain sweep (1.25 µs/div)
- MS2668C - 06 - Trigger/gate circuit (Pre-trigger and post trigger available)
- MS2668C - 07 - AM/FM demodulator (Outputs to loudspeaker or earphone connector)
- MS2668C - 10 - Centronics interface (GPIB interface can not be used simultaneously)
- MS2668C - 15 - Sweep signal output (X, Z)
- MS2668C - 90 - Extended three year warranty service
- MS2668C - 91 - Extended five year warranty service
| Model | MS2668C |
|---|
The Anritsu MS2668C Spectrum Analyzer operates over a frequency range of 9 kHz to 40 GHz, with a sensitivity of -100 dBm and resolution of 1 Hz. Utilizing a super-heterodyne receiver design, it efficiently converts high-frequency signals into measurable outputs. This advanced spectrum analyzer ensures accurate analysis of known and unknown signals with superior precision and stability.
It is widely used for documenting and analyzing electrical input signals, spectral compositions, and signal magnitudes across a wide frequency range, making it ideal for both research and industrial applications.
Testwall can supply the used Anritsu MS2668C Spectrum Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2668C Spectrum Analyzer.
