Anritsu

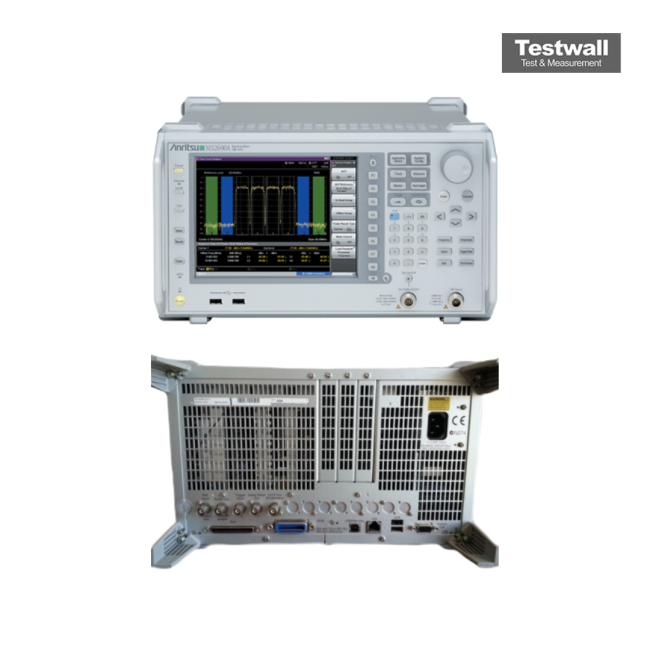

Anritsu MS2690A
50Hz To 6GHz Signal Analyzer
50 Hz to 6.0 GHz Frequency Range
-158 dBm/Hz (typ.) at 1 GHz, Preamp ON Display Average Noise Level (DANL)
-105 dBc/Hz at 1 GHz, 10 kHz offset (typ.) Phase Noise
1 Hz to 3 MHz (-3 dB bandwidth) Resolution Bandwidth (RBW)
+30 dBm (1 W) average power Input Level (Maximum)
| Attribute | Value |
|---|---|
| Frequency Range | 50 Hz to 6.0 GHz |
| Display Average Noise Level (DANL) | -158 dBm/Hz (typ.) at 1 GHz, Preamp ON |
| Phase Noise | -105 dBc/Hz at 1 GHz, 10 kHz offset (typ.) |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz (-3 dB bandwidth) |
| Input Level (Maximum) | +30 dBm (1 W) average power |
| Dynamic Range | Up to 107 dB (typ.) TOI-based |
| Amplitude Accuracy | ±0.3 dB (typ.) at 1 GHz |
| Spurious Free Dynamic Range (SFDR) | 70 dBc (typ.) |
| Analysis Bandwidth | Up to 31.25 MHz (with Vector Signal Analyzer option) |
| Dimensions (W x H x D) | 426 mm x 221 mm x 470 mm (approx. 16.8 x 8.7 x 18.5 in) |
Anritsu MS2690A 50Hz To 6GHz Signal Analyzer Options:
- MS2690A - 001 - Rubidium Frequency Reference
- MS2690A - 003 - 3GHZ Preselector Lower Limit
- MS2690A - 008 - 6GHZ Preamp
- MS2690A - 017 - Noise Figure Measurement
- MS2690A - 020 - Vector Signal Generator - 125MHZ To 6GHZ
- MS2690A - 031 - Wide Bandwidth Analysis Extension
- MS2690A - 037 - Rubidium Frequency Reference
- MS2690A - 050 - Hdd Digitizing Interface
- MS2690A - 077 - 62.5MHZ Analysis Bandwidth
- MS2690A - 078 - 125MHZ Analysis Bandwidth
- MS2690A - 101 - Rubidium Frequency Reference
- MS2690A - 103 - 3GHZ Preselector Lower Limit
- MS2690A - 108 - 6GHZ Preamp
- MS2690A - 117 - Noise Figure Measurement Function
- MS2690A - 120 - Vector Signal Generator - 125MHZ To 6GHZ
- MS2690A - 131 - Wide Bandwidth Analysis Extension
- MS2690A - 137 - Rubidium Reference Oscillator
- MS2690A - 150 - Hdd Digitizing Interface
- MS2690A - 177 - Analysis Bandwidth Extension To 62.5 MHZ
- MS2690A - 178 - Analysis Bandwidth Extension To 125 MHZ
- MS2690A - 180 - Cpu/Windows7 Upgrade
- MS2690A - MX269000A - Standard Software
- MS2690A - MX269010A - Mobile Wimax Measurement Software
- MS2690A - MX269011A - W-Cdma/Hspa Downlink Measurement Software
- MS2690A - MX269012A - W-Cdma/Hspa Uplink Measurement Software
- MS2690A - MX269013A - Gsm/Edge Measurement Software
- MS2690A - MX269013A-001 - Edge Evolution Measurement Software
- MS2690A - MX269014A - Etc/Dsrc Measurement Software
- MS2690A - MX269015A - Td-Scdma Measurement Software
- MS2690A - MX269016A - Xg-Phs Measurement Software
- MS2690A - MX269017A - Vector Modulation Analysis Software
- MS2690A - MX269020A - Lte Fdd Downlink Measurement Software
- MS2690A - MX269020A-001 - Lte-Advanced Fdd Downlink Measurement Software
- MS2690A - MX269021A - Lte Fdd Uplink Measurement Software
- MS2690A - MX269021A-001 - Lte-Advanced Fdd Uplink Measurement Software
- MS2690A - MX269022A - Lte Tdd Downlink Measurement Software
- MS2690A - MX269022A-001 - Lte-Advanced Tdd Downlink Measurement Software
- MS2690A - MX269023A - Lte Tdd Uplink Measurement Software
- MS2690A - MX269023A-001 - Lte-Advanced Tdd Uplink Measurement Software
- MS2690A - MX269024A - Cdma2000 Forward Link Measurement Software
- MS2690A - MX269024A-001 - All Measure Function
- MS2690A - MX269026A - Ev-Do Forward Link Measurement Software
- MS2690A - MX269026A-001 - All Measure Function
- MS2690A - MX269028A - Wlan (802.11) Measurement Software
- MS2690A - MX269028A-002 - 802.11Ac (160 MHZ) Measurement Software
- MS2690A - MX269030A - W-Cdma Bs Measurement Software
- MS2690A - MX269037A - Isdb-Tmm
- MS2690A - MX269051A - 5G Standard Measurement Software (Base License)
- MS2690A - MX269051A-011 - Nr Tdd Sub-6GHZ Downlink
- MS2690A - MX269051A-061 - Nr Tdd Sub-6GHZ Uplink
- MS2690A - MX269099A - Standard Waveform Pattern
- MS2690A - MX269901A - Hsdpa/Hsupa Iqproducer
- MS2690A - MX269902A - Tdma Iqproducer
- MS2690A - MX269904A - Multi-Carrier Iqproducer
- MS2690A - MX269905A - Mobile Wimax Iqproducer
- MS2690A - MX269908A - Lte Iqproducer
- MS2690A - MX269908A-001 - Lte-Advanced Fdd
- MS2690A - MX269909A - Xg-Phs Iqproducer
- MS2690A - MX269910A - Lte Tdd Iqproducer
- MS2690A - MX269910A-001 - Lte-Advanced Tdd
- MS2690A - MX269911A - Wlan Iqproducer
- MS2690A - MX269911A-001 - 802.11Ac (80 MHZ)
- MS2690A - MX269912A - Td-Scdma Iqproducer
- MS2690A - MX269913A - 5G Nr Tdd Sub-6GHZ Iqproducer
- MS2690A - MX269970A - 1Xev-Do Reverse Receiver Test Waveform Pattern
- MS2690A - MX703721A - Lte Automatic Measurement Software
- MS2690A - MX703721A-010 - Addition Of W-Cdma Base Station
| Model | MS2690A |
|---|
The Anritsu MS2690A Signal Analyzer covers a wide frequency range from 50Hz to 6GHz, delivering high-performance signal analysis for advanced RF applications. It offers a wide dynamic range and excellent phase noise characteristics, enabling accurate measurement of high-frequency signals.
It is ideal for testing wireless communication systems, broadcasting equipment, and electronic components. The MS2690A supports a variety of analysis functions including spectrum analysis and modulation analysis.
Testwall can supply the used Anritsu MS2690A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2690A.
