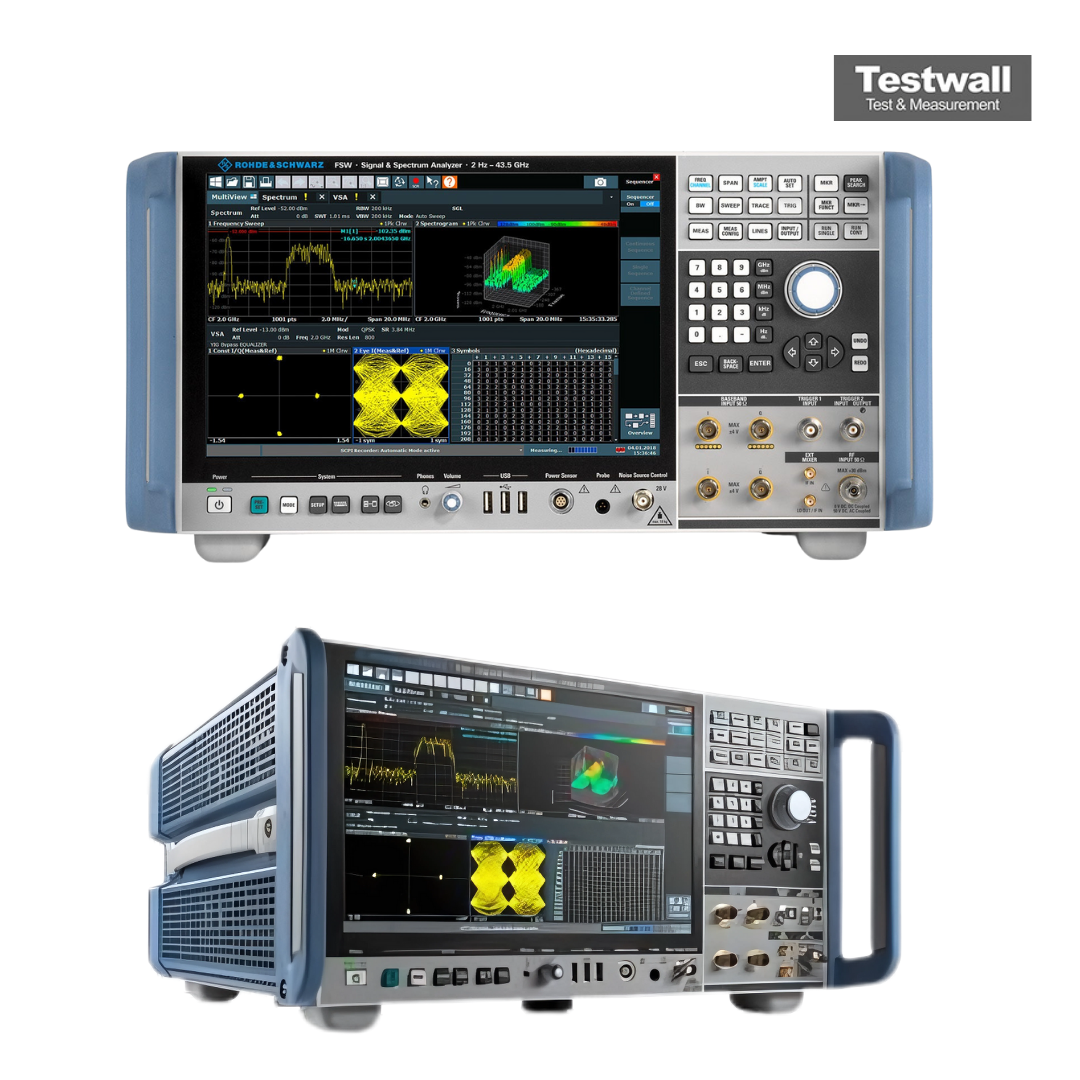

Rohde & Schwarz FSW67
Signal and Spectrum Analyser, 2 Hz - 67 GHz
2 Hz to 67 GHz Frequency Range
-172 dBm (typ.) at 1 GHz with preamplifier Displayed Average Noise Level (DANL)
-142 dBc/Hz at 1 GHz, 10 kHz offset (typ.) Phase Noise
Up to 78 dB third-order intermodulation-free dynamic range Dynamic Range
Up to 2 GHz (with optional bandwidth extension) Analysis Bandwidth
| Attribute | Value |
|---|---|
| Frequency Range | 2 Hz to 67 GHz |
| Displayed Average Noise Level (DANL) | -172 dBm (typ.) at 1 GHz with preamplifier |
| Phase Noise | -142 dBc/Hz at 1 GHz, 10 kHz offset (typ.) |
| Dynamic Range | Up to 78 dB third-order intermodulation-free dynamic range |
| Analysis Bandwidth | Up to 2 GHz (with optional bandwidth extension) |
| Resolution Bandwidth (RBW) | 1 Hz to 50 MHz |
| Input Impedance | 50 Ohm |
| Maximum Input Level | +30 dBm (1 W) continuous power at RF input |
| Display | 12.1-inch XGA touchscreen display (1024 x 768 resolution) |
| Connectivity & Interfaces | LAN (1000BASE-T), USB 3.0, GPIB (optional), DisplayPort |
Rohde & Schwarz FSW67 Options:
- FSW67 - B4 - OCXO Precision Frequency Reference
- FSW67 - B8 - Resolution Bandwidth > 10 MHz
- FSW67 - B10 - External Generator Control
- FSW67 - B13 - Highpass Filter for Harmonic Measurements
- FSW67 - B17 - Digital Baseband Interface
- FSW67 - B18 - Spare Solid State Drive (removable hard drive)
- FSW67 - B21 - LO/IF Connections for External Mixers
- FSW67 - B24 - RF Preamplifier, 100 kHz to 67 GHz
- FSW67 - B28 - 28 MHz Analysis Bandwidth
- FSW67 - B33 - USB Mass Memory Write Protection
- FSW67 - B40 - 40 MHz Analysis Bandwidth
- FSW67 - B71 - Analog Baseband Inputs, 40 MHz Analysis Bandwidth
- FSW67 - B71E - 80 MHz Analysis Bandwidth for Analog Baseband Inputs
- FSW67 - B80 - 80 MHz Analysis Bandwidth
- FSW67 - B160 - 160 MHz Analysis Bandwidth
- FSW67 - B160R - Real-Time Spectrum Analyzer 160 MHz, POI ≤ 15 µs
- FSW67 - B320 - 320 MHz Analysis Bandwidth
- FSW67 - B500 - 500 MHz Analysis Bandwidth
- FSW67 - K6 - Pulse Measurements
- FSW67 - K6S - Time-sidelobe Measurements
- FSW67 - K7 - Analog Modulation Analysis for AM/FM/φM
- FSW67 - K10 - GSM/EDGE/EDGE Evolution/VAMOS Measurements
- FSW67 - K17 - Multicarrier Group Delay Measurements
- FSW67 - K18 - Amplifier Measurements
- FSW67 - K30 - Noise Figure Measurements
- FSW67 - K33 - Security Write Protection of Solid State Drive
- FSW67 - K40 - Phase Noise Measurements
- FSW67 - K54 - EMI Measurement Application
- FSW67 - K60 - Transient Measurements
- FSW67 - K60H - Transient Hop Measurements
- FSW67 - K60C - Transient Chirp Measurements
- FSW67 - K70 - Vector Signal Analysis
- FSW67 - K72 - 3GPP FDD (WCDMA) BS Measurements (incl. HSDPA and HSDPA+)
- FSW67 - K73 - 3GPP FDD (WCDMA) MS Measurements (incl. HSUPA and HSUPA+)
- FSW67 - K76 - TD-SCDMA BS Measurements
- FSW67 - K77 - TD-SCDMA UE Measurements
- FSW67 - K82 - CDMA2000® BS Measurements
- FSW67 - K83 - CDMA2000® MS Measurements
- FSW67 - K84 - 1xEV-DO BS Measurements
- FSW67 - K85 - 1xEV-DO MS Measurements
- FSW67 - K91 - WLAN 802.11a/b/g Measurements
- FSW67 - K91N - WLAN 802.11n Measurements
- FSW67 - K91AC - WLAN 802.11ac Measurements
- FSW67 - K91P - WLAN 802.11p Measurements
- FSW67 - K100 - EUTRA/LTE FDD Downlink Measurements
- FSW67 - K101 - EUTRA/LTE TDD Uplink Measurements
- FSW67 - K102 - EUTRA/LTE Downlink MIMO Measurements
- FSW67 - K103 - EUTRA/LTE Advanced Uplink Measurements
- FSW67 - K104 - EUTRA/LTE TDD Downlink Measurements
- FSW67 - K160RE - 160 MHz Real-Time Measurement Application, POI > 15 µs
- FSW67 - U160 - Analysis Bandwidth Upgrade from 80 MHz to 160 MHz
- FSW67 - U160R - Real-Time Spectrum Analyzer 160 MHz, POI ≤ 15 µs
- FSW67 - U320 - Analysis Bandwidth Upgrade from 160 MHz to 320 MHz
- FSW67 - U500 - Analysis Bandwidth Upgrade from 80 MHz to 500 MHz
| Model | FSW67 |
|---|
The Rohde & Schwarz FSW67 signal and spectrum analyzer offers up to 2 GHz analysis bandwidth, low phase noise of –137 dBc/Hz at 10 kHz offset, and dynamic range of –88 dBc for WCDMA ACLR. It features <0.4 dB measurement uncertainty up to 8 GHz, real‑time analysis to 512 MHz, and a 12.1" touchscreen.
Ideal for demanding RF applications, the Rohde & Schwarz FSW67 enables fast, precise, and parallel signal measurements, with a highly intuitive interface supporting complex workflows with ease.
Testwall can supply the used Rohde & Schwarz FSW67, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSW67.
