Anritsu MS2711A
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz |
| Dynamic Range | +20 dBm to -105 dBm |
| Frequency Resolution | 100 Hz |
| Resolution Bandwidth | 3 kHz to 3 MHz (in 1-3 steps) |
| Video Bandwidth | 3 kHz to 3 MHz (in 1-3 steps) |
| Display | 1/4 VGA Sunlight Readable LCD, 320 x 240 pixels |
| Battery Life | Approximately 2 hours with internal NiMH battery pack |
| Input Impedance | 50 Ohms |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Weight | Approximately 1.8 kg (4.0 lbs) with battery |
Anritsu MS2711A Options:
- MS2711A - Option 5 - Add RF Wattmeter Power Monitor (RF detector not included)
| Model | MS2711A |
|---|

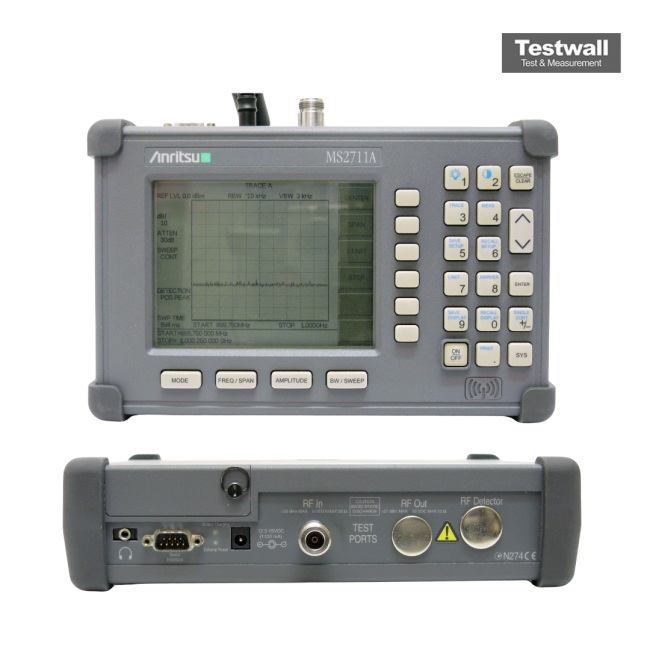

The Anritsu MS2711A Handheld Spectrum Analyzer offers exceptional performance in a compact, battery-powered design weighing just 4.9 lbs. It provides a noise level below -115 dBm, RBWs ranging from 10 kHz to 1 MHz, and VBWs from 100 Hz to 300 kHz, enabling precise signal analysis. With amplitude accuracy of ±2 dB, quick zoom functions, and dedicated one-button measurements, it ensures reliable field testing in mobile environments.
The MS2711A supports both automatic and manual attenuator control, trace averaging, reference level offset, and limit lines for advanced testing. It allows storage of up to 200 measurement traces and 10 test setups, with alphanumeric labeling and automatic time/date stamping.
Testwall can supply the used Anritsu MS2711A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2711A.
