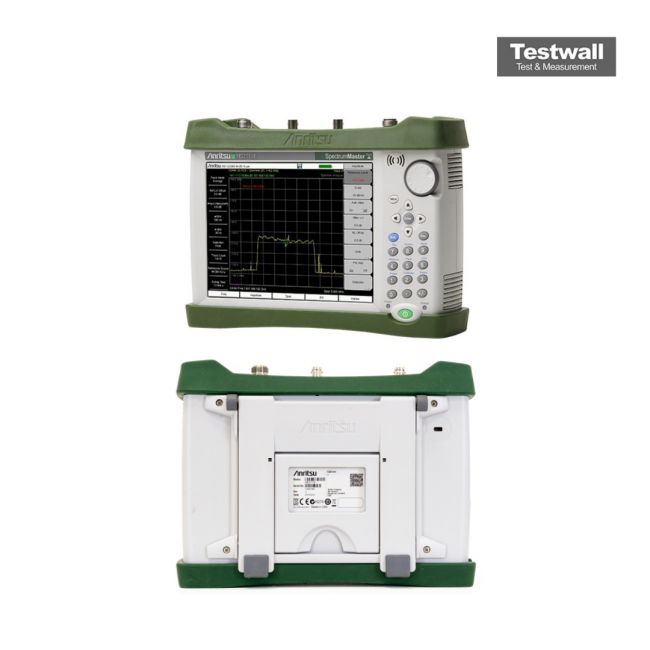

Anritsu MS2711E
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz |
| Dynamic Range | +10 dBm to -135 dBm (DANL) |
| Resolution Bandwidth | 100 Hz to 1 MHz (in 1-3-10 steps) |
| Displayed Average Noise Level (DANL) | -135 dBm typical at 1 GHz, 300 Hz RBW |
| Phase Noise | -100 dBc/Hz typical at 1 GHz, 10 kHz offset |
| Amplitude Accuracy | ±1.5 dB |
| Display | 7-inch (178 mm) Sunlight Readable Color LCD, 640 x 480 resolution |
| Battery Life | Approximately 2 hours with standard battery pack |
| Input Impedance | 50 Ohms nominal |
| Operating Temperature Range | -10°C to +55°C (14°F to 131°F) |
Anritsu MS2711E Options:
- MS2711E - 0008 - Preamplifier
- MS2711E - 0019 - High-Accuracy Power Meter (requires External Power Sensor)
- MS2711E - 0020 - Tracking Generator
- MS2711E - 0025 - Interference Analyzer (Option 0031 recommended)
- MS2711E - 0027 - Channel Scanner
- MS2711E - 0029 - Power Meter
- MS2711E - 0031 - GPS Receiver (requires Antenna)
- MS2711E - 0098 - Standard Calibration (ANSI Z540-1-1994)
- MS2711E - 0099 - Premium Calibration (ANSI Z540-1-1994) plus printed test data
- MS2711E - 0444 - EMF Measurements (requires Anritsu Isotropic Antenna)
- MS2711E - 0509 - AM/FM/PM Analyzer
| Model | MS2711E |
|---|
The Anritsu MS2711E Spectrum Master is a rugged handheld spectrum analyzer designed for field applications. It covers 9 kHz to 3 GHz with advanced measurements such as RSSI, channel power, ACPR, occupied bandwidth, and spectral emission mask. With >85 dB dynamic range, -142 dBm DANL, and ±50 ppb GPS-enabled frequency accuracy, it ensures precision in interference analysis, PIM hunting, and signal quality assessment.
Its intuitive touchscreen interface and lightweight design allow engineers to monitor AMPS, TDMA, CDMA, GSM, and other wireless systems with ease. Additional functions include channel scanning, field strength mode, and AM/FM/PM analysis.
Testwall can supply the used Anritsu MS2711E Spectrum Master, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2711E Spectrum Master.
