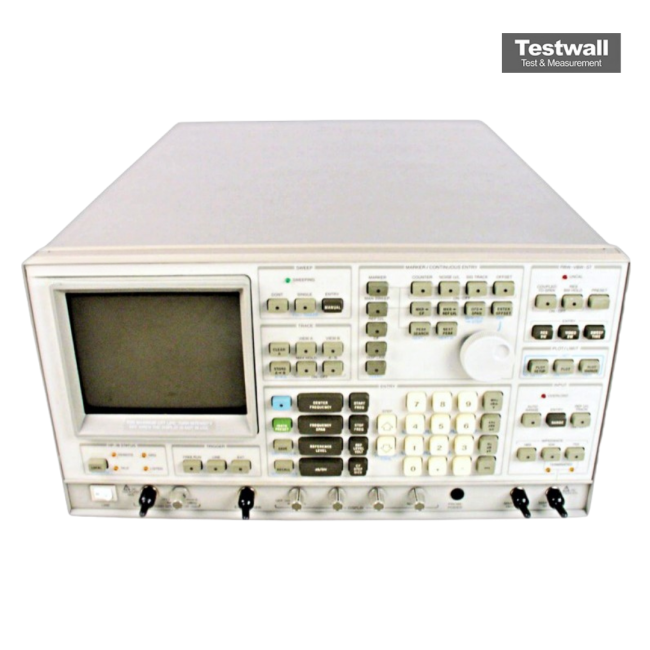

Keysight (Agilent) 3585B
| Attribute | Value |
|---|---|
| Frequency Range | 20 Hz to 40 MHz |
| Frequency Resolution | 1 Hz |
| Dynamic Range | 90 dB |
| Input Impedance | 50 Ohms or 1 MOhm |
| Amplitude Measurement Range | -120 dBm to +30 dBm |
| Resolution Bandwidth | 1 Hz to 3 MHz in 1-3-10 steps |
| Sweep Time | 20 ms to 500 s |
| Display | CRT display with 10 x 8 division graticule |
| Interface | HP-IB (IEEE-488) GPIB Interface |
| Power Requirements | 100/120/220/240 VAC, 48-66 Hz, 375 VA maximum |
Keysight (Agilent) 3585B 40MHz Spectrum Analyser Options:
- 3585B - 001 - Sweep Gating
- 3585B - 002 - Field Installable Sweep Gating Kit
| Model | 3585B |
|---|
The Keysight (Agilent) 3585B Spectrum Analyzer offers a frequency range from 20Hz to 40.1MHz, resolution bandwidth from 3Hz to 30kHz, and an amplitude range between -137 to +30dBm. With a sharp 3Hz resolution, fully synthesized tuning, and amplitude accuracy of ±0.25 dB, it ensures superior performance for baseband signal analysis. It includes a tracking generator and HPIB interface, delivering 80–100 dB spurious-free dynamic range.
Designed for precise analysis of voice, video, and digital signals, the 3585B is ideal for applications demanding high dynamic range and accuracy in data integrity testing across a wide frequency spectrum.
Testwall can supply the used Keysight (Agilent) 3585B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 3585B.
