Anritsu MS2723C
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 13 GHz |
| Displayed Average Noise Level (DANL) | -163 dBm (typical) at 1 GHz with preamplifier enabled |
| Phase Noise | -100 dBc/Hz at 10 kHz offset (typical) at 1 GHz carrier |
| Amplitude Accuracy | ±0.5 dB (typical) |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz in 1-3-10 steps |
| Dynamic Range | Up to 108 dB (typical) TOI-based dynamic range |
| Third Order Intercept (TOI) | +17 dBm (typical) at 1 GHz |
| Battery Operation | Up to 2.5 hours of continuous operation with standard Li-Ion battery pack |
| Display | 8.4-inch daylight-viewable color LCD with 800 x 600 resolution |
| Weight | Approximately 3.9 kg (8.6 lbs) including battery |
Anritsu MS2723C 9kHz To 13GHz Handheld Spectrum Analyser Options:
- MS2723C - 19 - High Accuracy Power Meter (Requires Power Sensor)
- MS2723C - 24 - Iq Waveform Capture
- MS2723C - 25 - Interference Analysis
- MS2723C - 27 - Channel Scanner
- MS2723C - 31 - Gps Receiver (Requires Antenna P/N 2000-1528-R)
- MS2723C - 33 - Cdma Over-The-Air (Ota) Measurements
- MS2723C - 34 - Ev-Do Over-The-Air (Ota) Measurements
- MS2723C - 35 - W-Cdma/Hspa+ Over-The-Air (Ota) Measurements
- MS2723C - 37 - Mobile Wimax Over-The-Air (Ota) Measurements
- MS2723C - 38 - Td-Scdma/Hspa+ Over-The-Air (Ota) Measurements
- MS2723C - 40 - Gsm/Edge Rf Measurements
- MS2723C - 41 - Gsm/Edge Rf Demodulation
- MS2723C - 42 - Cdma Rf Measurements
- MS2723C - 43 - Cdma Demodulation
- MS2723C - 431 - Coverage Mapping
- MS2723C - 44 - W-Cdma/Hspa+ Rf Measurements
- MS2723C - 46 - Fixed Wimax Rf Measurements
- MS2723C - 47 - Fixed Wimax Rf Demodulation
- MS2723C - 509 - Am/Fm/Pm Analyzer
- MS2723C - 541 - Lte Rf Measurements
- MS2723C - 542 - Lte Modulation Measurements
- MS2723C - 543 - 15 MHZ And 20 MHZ Lte Modulation Measurements
- MS2723C - 546 - Lte Over-The-Air (Ota) Measurements
- (RECOMMEND OPTION 0031)
- MS2723C - 551 - Td-Lte Rf Measurements
- MS2723C - 552 - Td-Lte Modulation Measurements
- MS2723C - 556 - Td-Lte Over-The-Air (Ota) Measurements
- MS2723C - 60 - Td-Scdma/Hspa+ Rf Measurements
- MS2723C - 61 - Td-Scdma/Hspa+ Rf Demodulation
- MS2723C - 62 - Ev-Do Rf Measurements
- MS2723C - 63 - Ev-Do Demodulation
- MS2723C - 65 - W-Cdma/Hspa+ Demodulation
- MS2723C - 66 - Mobile Wimax Rf Measurements
- MS2723C - 67 - Mobile Wimax Demodulation
- MS2723C - 7 - Secure Data Operation
- MS2723C - 89 - Zero Span If Output
- MS2723C - 9 - Iq Demodulation Hardware
- MS2723C - 90 - Gated Sweep
| Model | MS2723C |
|---|

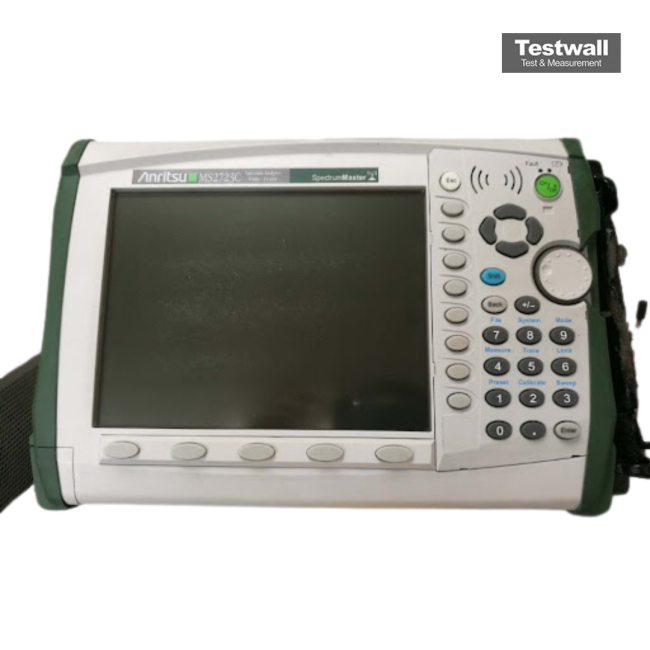

The Anritsu MS2723C is a handheld spectrum analyser covering 9 kHz to 13 GHz with a 1 Hz to 10 MHz resolution bandwidth (RBW) range. It includes a built-in preamplifier and AM/FM/SSB demodulator, ensuring high signal fidelity in a portable, battery-powered design. Ideal for rugged field applications, it provides accurate RF and microwave signal analysis even in challenging environments.
Engineered for WiFi/WiFi5 testing, spectrum monitoring, and cellular signal diagnostics, the MS2723C simplifies tasks and enhances productivity with reliable measurement capabilities and broad frequency coverage.
Testwall can supply the used Anritsu MS2723C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2723C.
