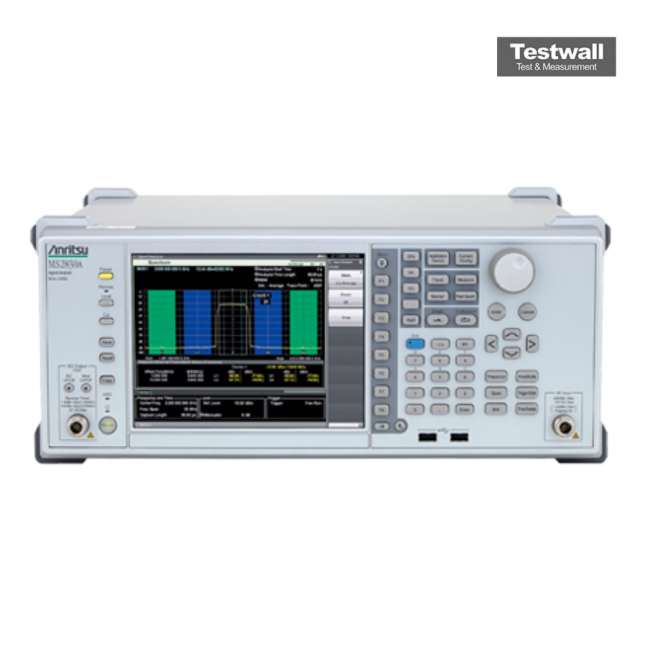

Anritsu MS2830A 9kHz to 6GHz Spectrum Analyser
9kHz to 6GHz?Spectrum Analyser
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 6 GHz |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Displayed Average Noise Level (DANL) | -158 dBm/Hz (typical, at 1 GHz, preamp ON) |
| Phase Noise | -98 dBc/Hz at 1 GHz, 10 kHz offset (typical) |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 W) |
| Amplitude Measurement Range | -158 dBm to +30 dBm |
| Dynamic Range | >97 dB (typical) |
| Display | 10.4-inch TFT color LCD touchscreen |
| Interface/Connectivity | USB, LAN (Ethernet), GPIB (optional) |
| Model | MS2830A |
|---|
The Anritsu MS2830A is a versatile signal and spectrum analyser covering 9 kHz up to 3.6 GHz, 6 GHz, or 13.5 GHz depending on configuration. It combines sweep-based spectrum scanning with FFT vector signal analysis, offering fast updates of ~2.1 ms and transfer speeds of ~4 ms. With low-noise sensitivity of –153 dBm/Hz, TOI of +15 dBm, and optional analysis bandwidths up to 125 MHz, it ensures accurate RF testing.
This analyser includes optional integrated vector signal generation (CW or modulated), making it suitable for TX/RX verification, noise figure, BER, and audio analysis. Its efficient design supports demanding applications with both speed and precision.
Testwall can supply the used Anritsu MS2830A Spectrum Analyser, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2830A Spectrum Analyser.
